Blade Solar Light Telescopic Pole

Blade Solar Light – Telescopic Pole

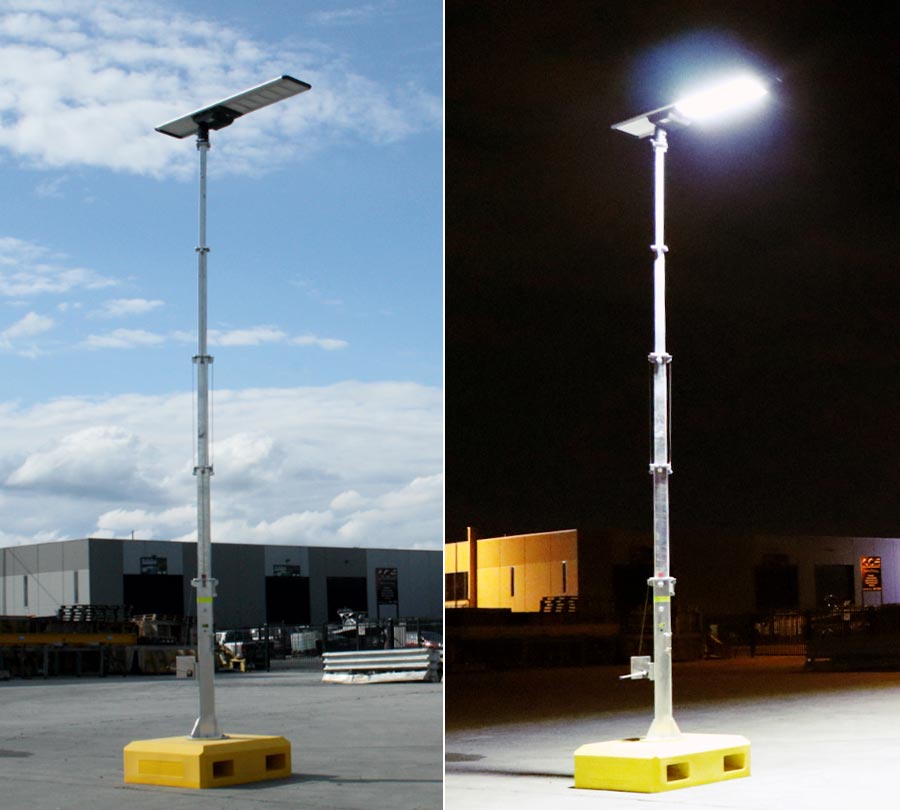

Dusk to Dawn Lighting

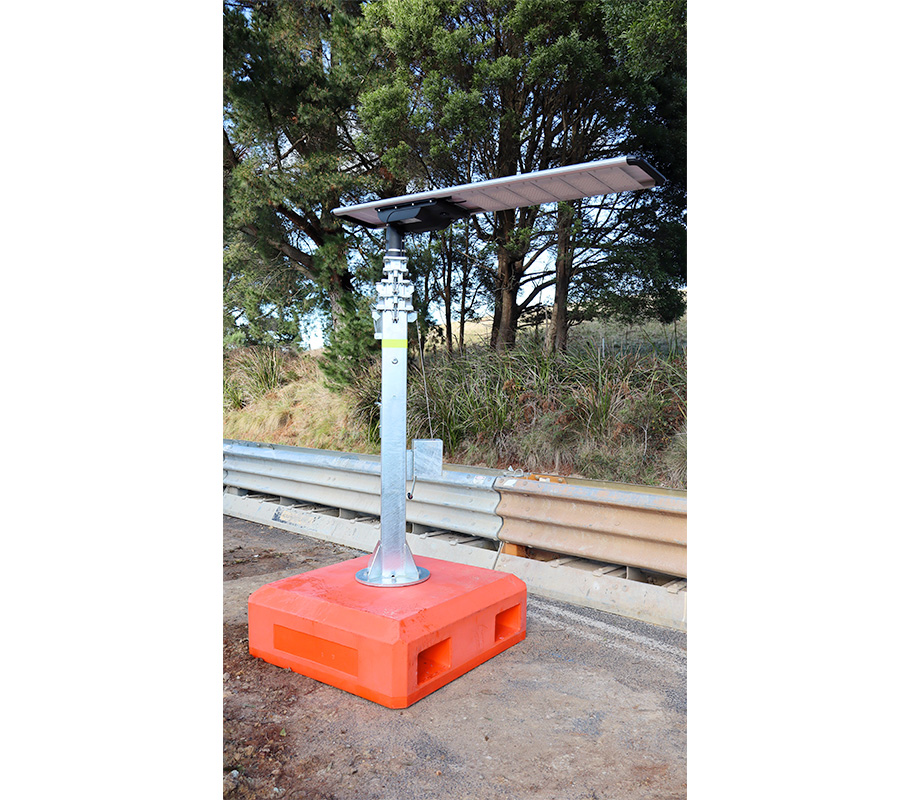

The innovative new Blade Solar Light on a telescopic pole is the all-in-one answer to your workzone lighting needs.

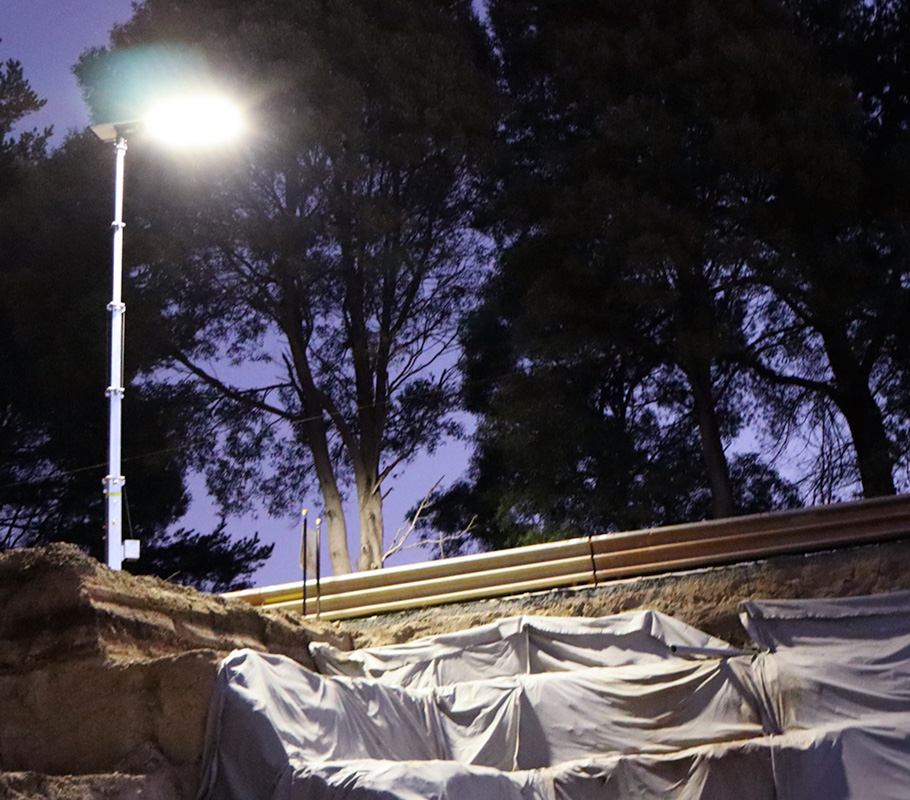

Simple to run, and powered by solar, this premium grade commercial portable lighting solution has a programmable smart lighting system, with status indicators and motion sensor detection. The extra large 12.8V lithium iron phosphate battery has the capacity to allow the light to run for seven days or more on sensor mode. This means dusk to dawn lighting even when there has been lack of sunlight on overcast days.

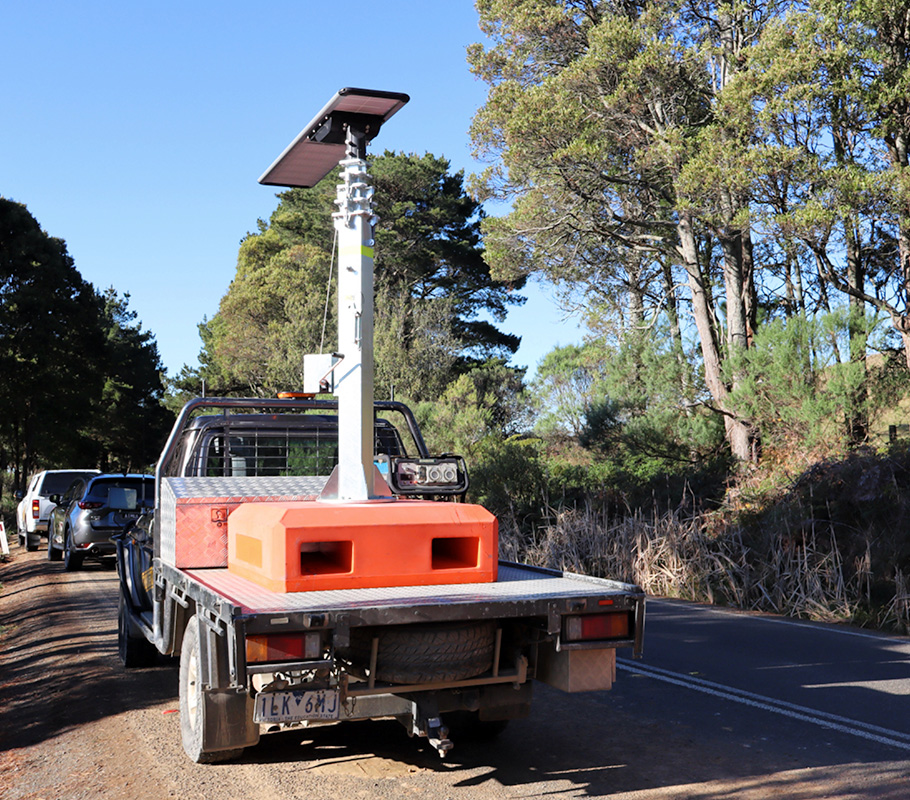

Deployment is simple and efficient. Just place the unit in the desired location using a forklift, then winch from lowered to raised position. The whole process takes less than two minutes.

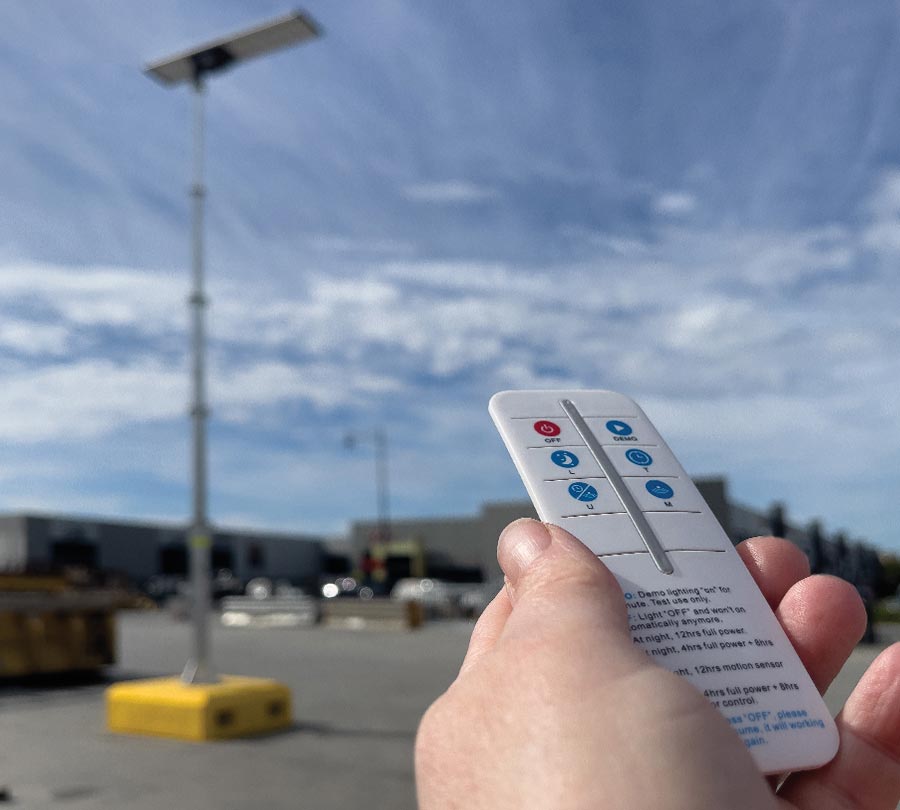

The optional remote programmable smart lighting control system has a reach of up to 30 metres, and does not rely on direct line of sight to function. It also allows users to control multiple units at the same time in “set and forget” auto or manual mode.

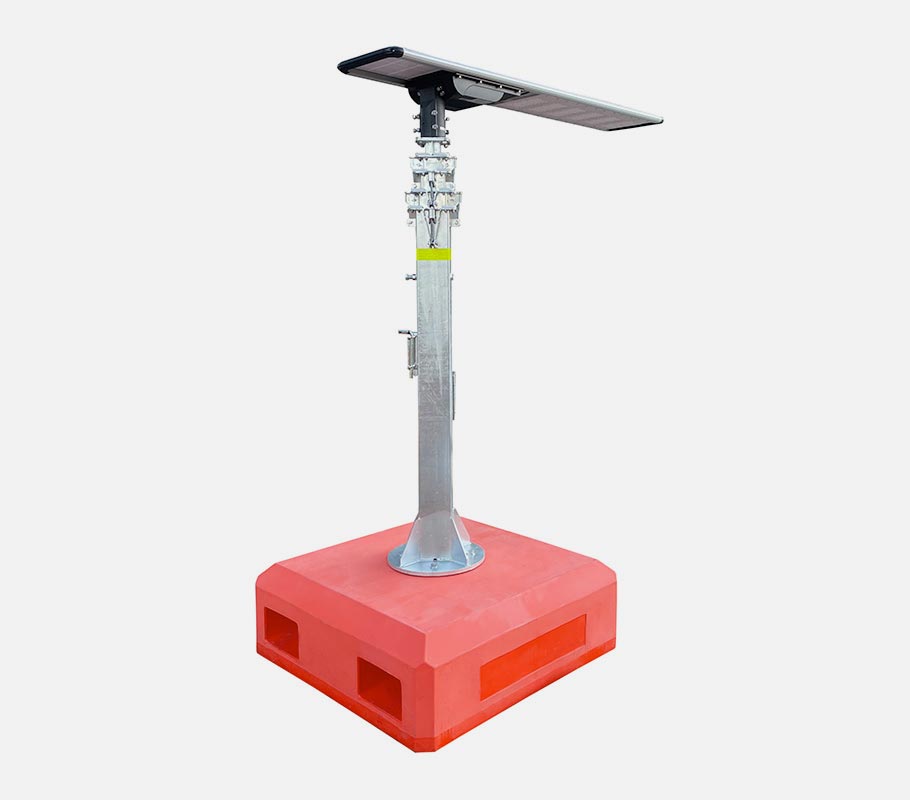

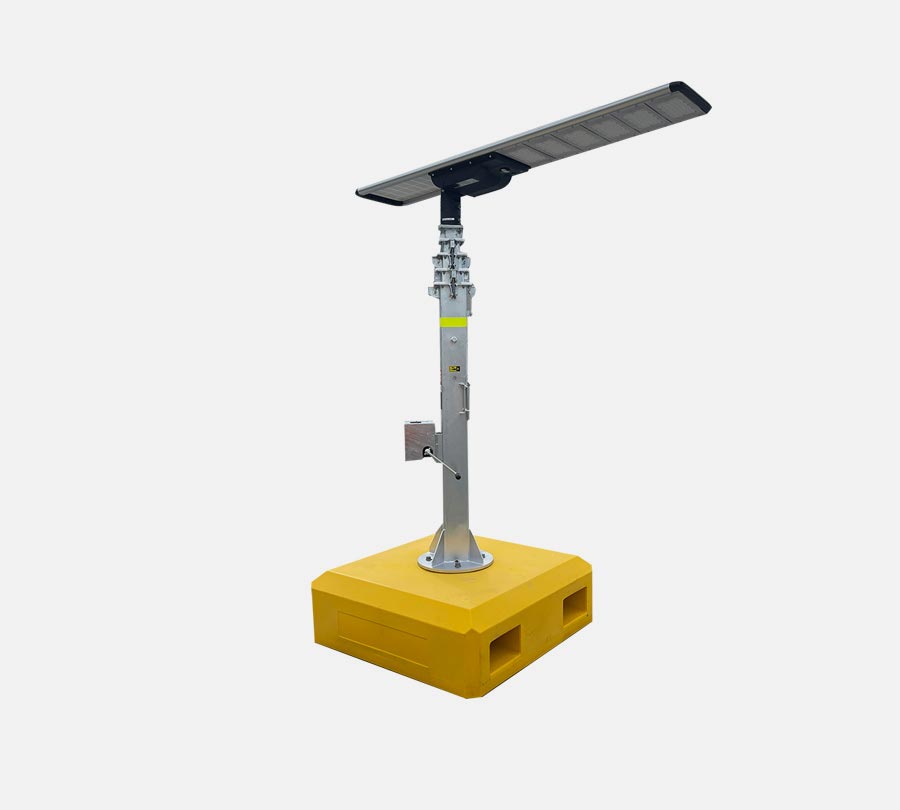

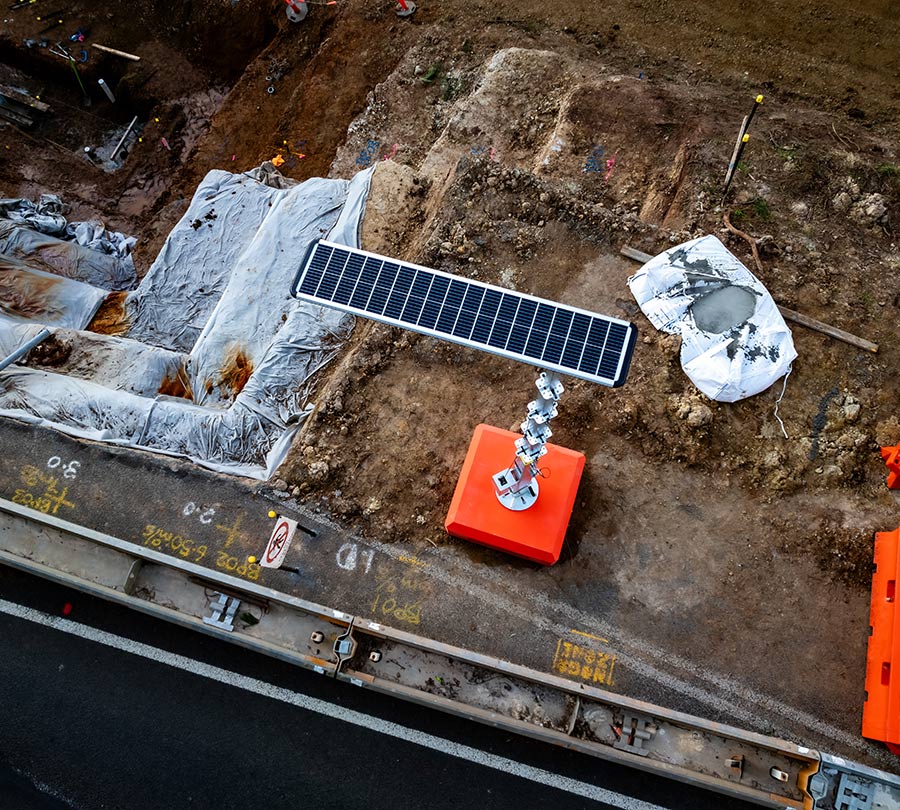

The Blade Solar Light has a rotationally moulded plastic base, which can be filled with an environmentally friendly concrete and recycled rubber mix, which is wind rated for regions A and B. The base can be customised to your business including a range of base colour options and an indented space for placement of branding signage or stickers.

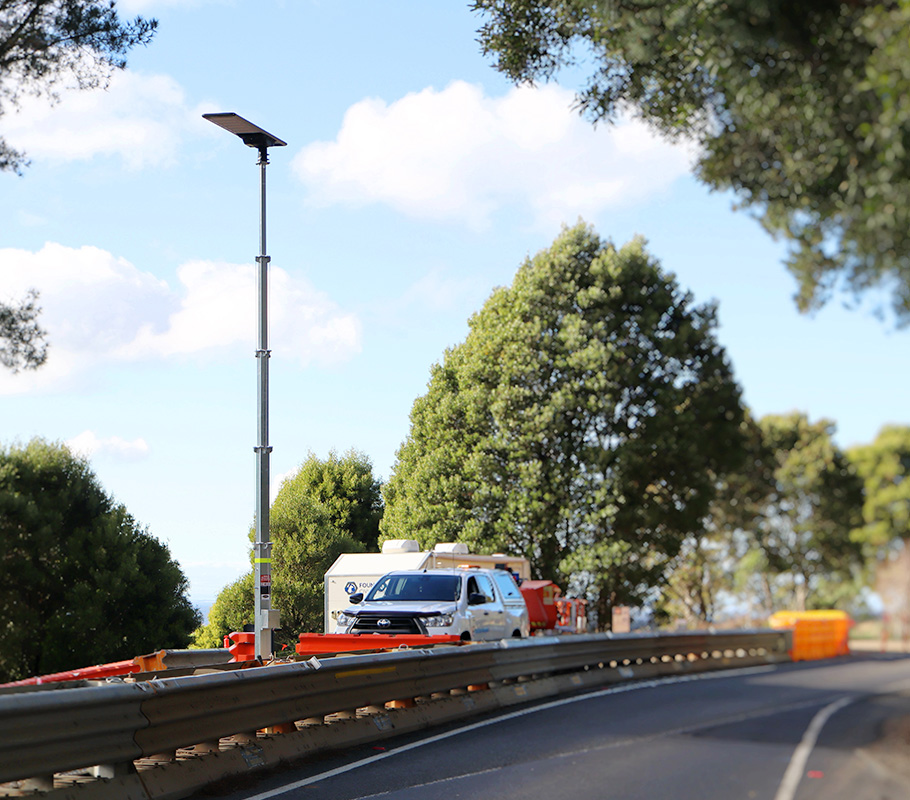

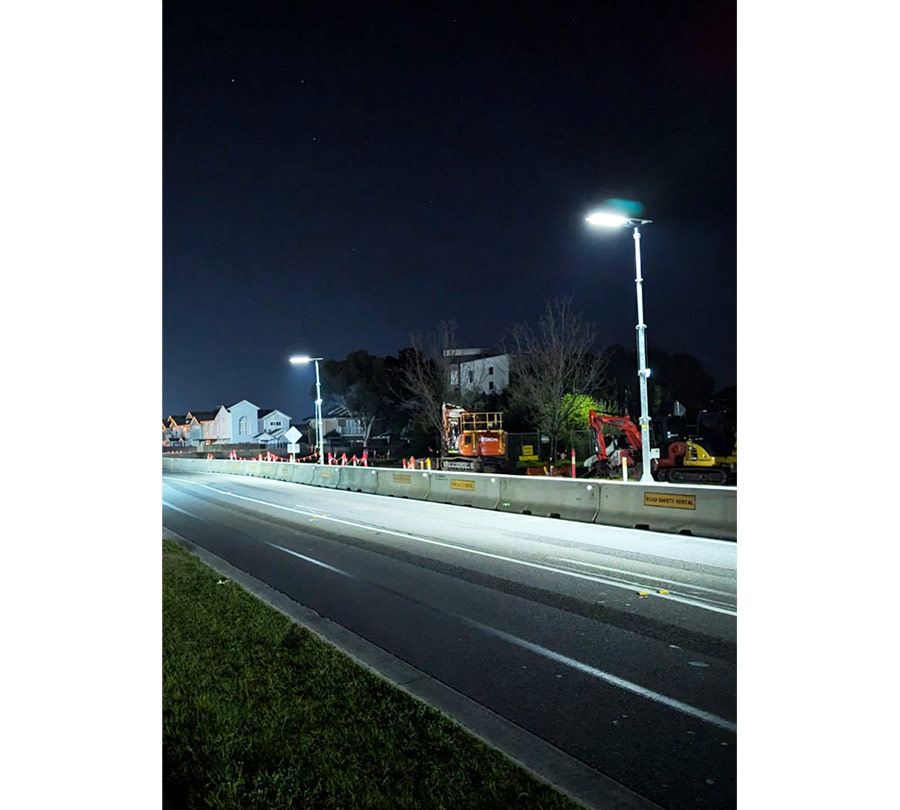

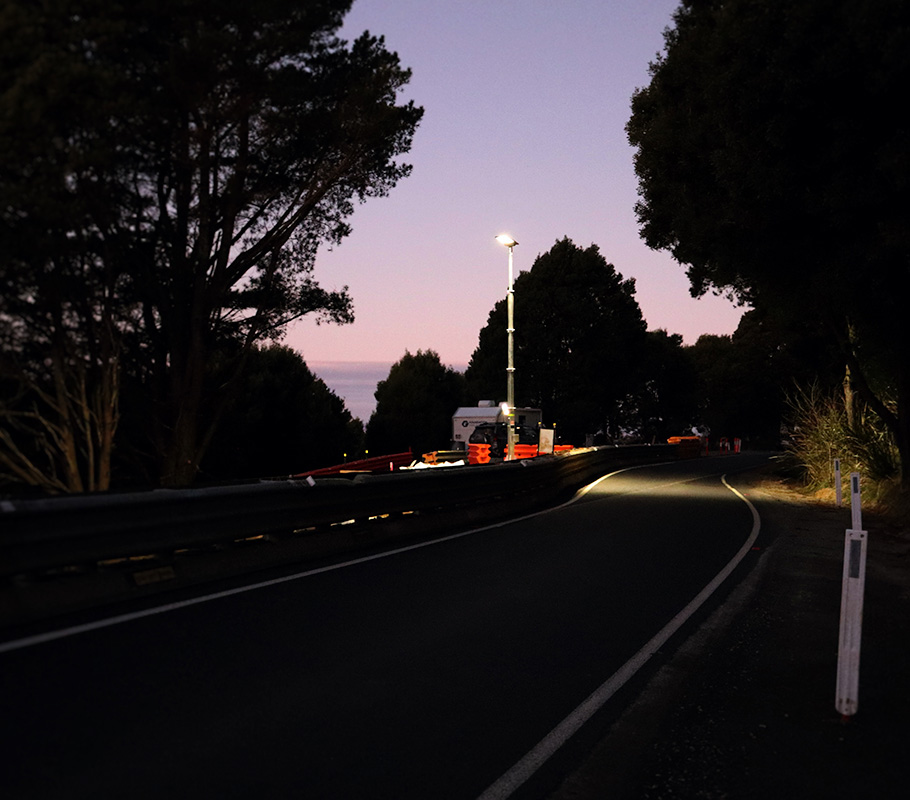

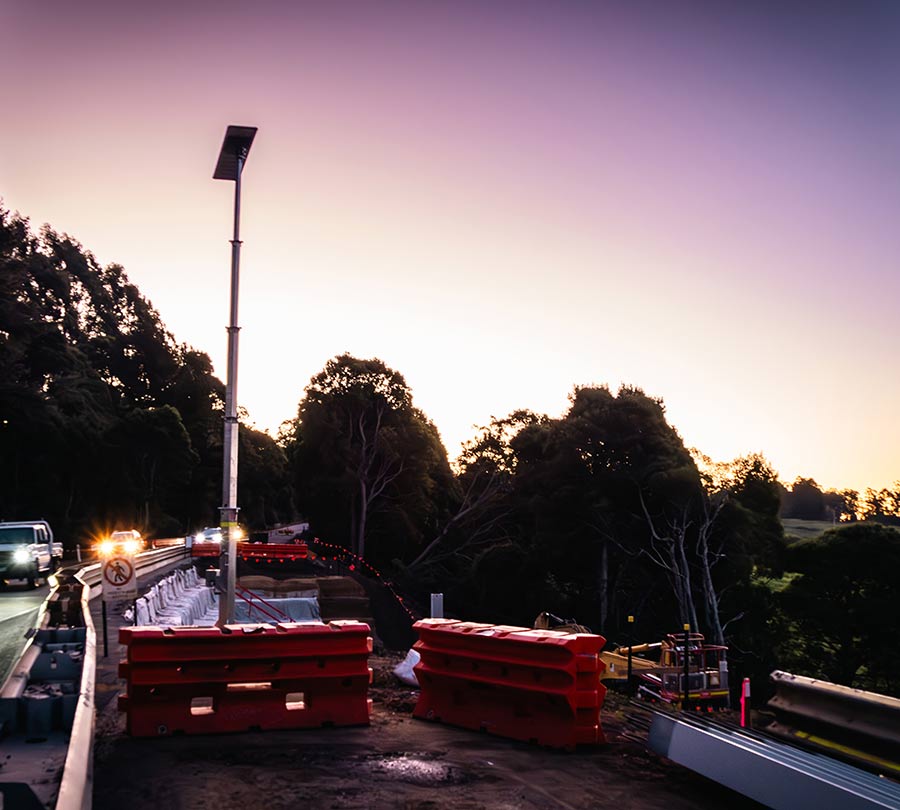

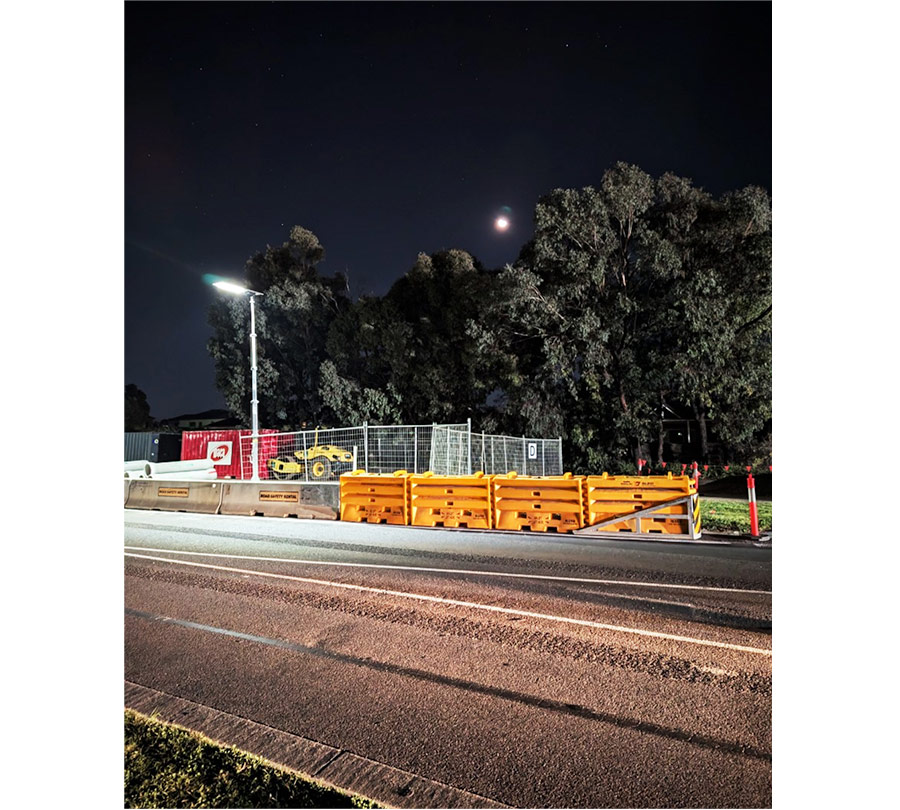

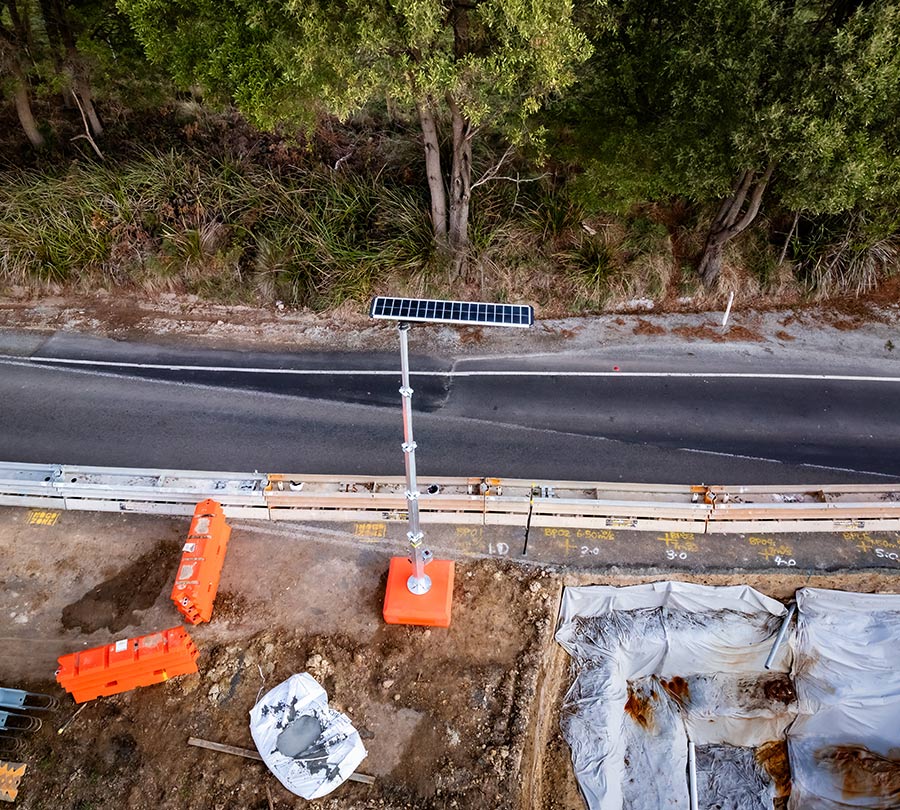

The perfect solution for off-grid, workzone lighting needs, the Blade Solar Light - Telescopic Pole is suitable for security lighting at roadworks and other construction sites.

  • Premium grade commercial solar lighting

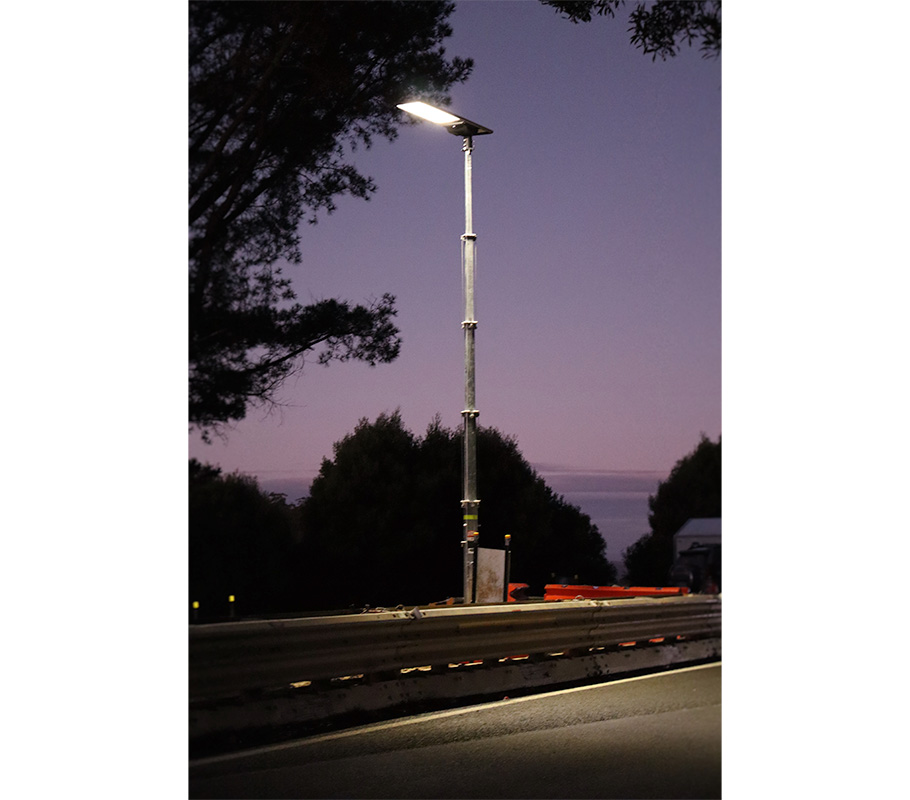

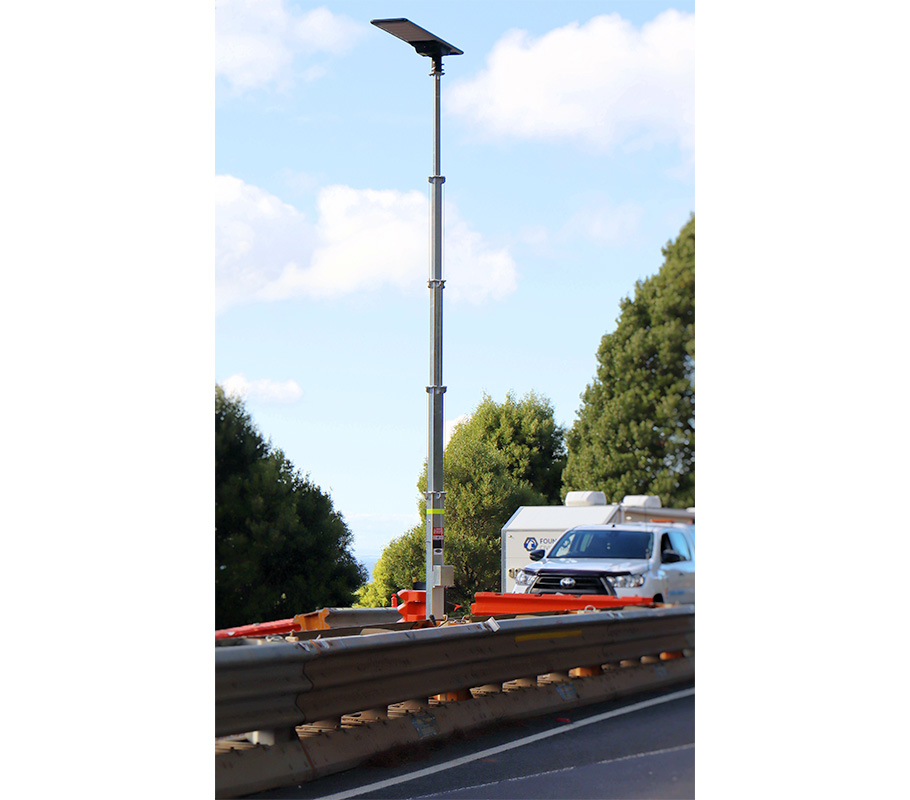

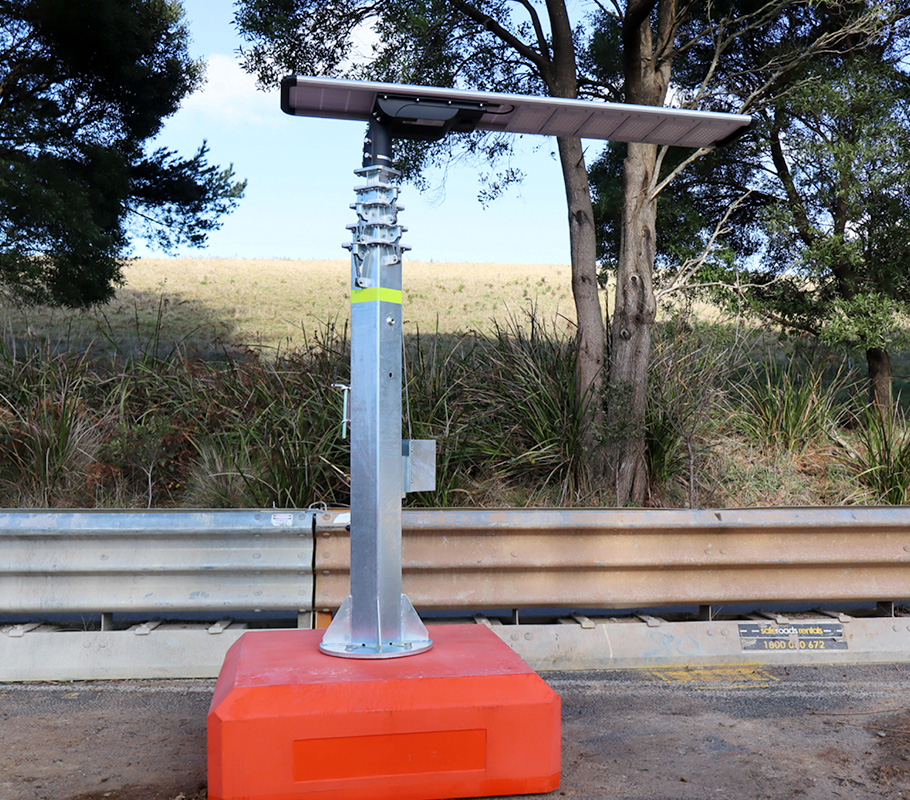

  • Newly designed hot dip galvanised (SHS) telescopic pole
  • Optional remote programmable smart lighting
  • Massive 66Ah battery capacity (up to 12.8V)
  • 5 year product warranty and 3 year battery warranty
  • Rotationally molded plastic base filled with eco-friendly concrete and recycled rubber mix
Buy Online
Need to order a large quantity? Enquire now

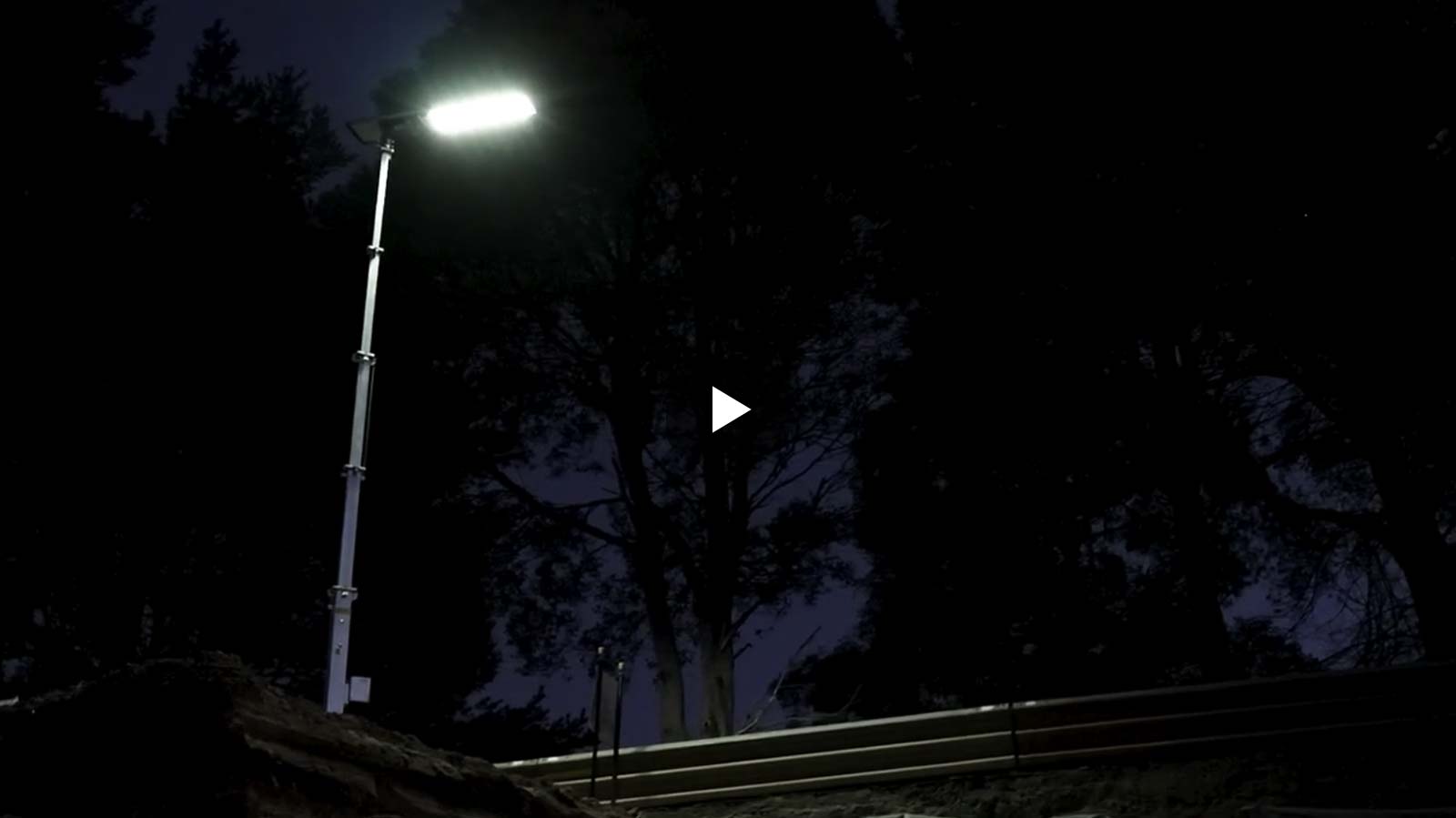

Videos

Solar Lighting
Solar Lighting
Solar Blade
Blade Solar Light - Telescopic Pole

Specifications

Efficiency 207lm/W
Lumens 15525lm
Colour Temperature 5000K
CRI Ra≥70
Beam Angle 150° x 60°
Weight 22.5kg
Battery Capacity 12.8V/66AH
Solar Panel Power 125W
Wind Rating 3 base options available to suit wind regions A, B and C
Telescopic Pole Plastic Base - Wind Region A & B Single Concrete Block Wind Region A Double Concrete Block Wind Region B & C
Collapsed Overall Height 2.6m 2.6m 2.9m
Expanded Overall Height 6.6 6.6 6.9
Base Weight 950kg 750kg 1700kg
Overall weight of a complete light with hinged pole 1090kg 890kg 1840kg


Product Features & Inclusions

207lm/W High Efficiency LED
Motion Sensor Status Indicator
0°- 7° Angle Adjustable Bracket
High Efficency, Extra Large Solar Cells
12.8 Volt Lithium Iron Phosphate Battery
Easy Maintenance Battery Pack
Remote Control (optional)
High Brightness
technical drawing
Technical drawing
Technical drawing

Downloads

Warranty: Light Fitting Warranty: Light Pole SOP - Installation
IES File
*Please note this file will only open using programs such as Dialux, AGI32, or Relux.
Usually 25-30 metres, but this will vary depending on the rating that you are seeking to achieve. Please contact us for further information.
Yes, on request. Please contact us for further information.
