Blade Solar Light - Hinged Pole

Powerful Light Spread

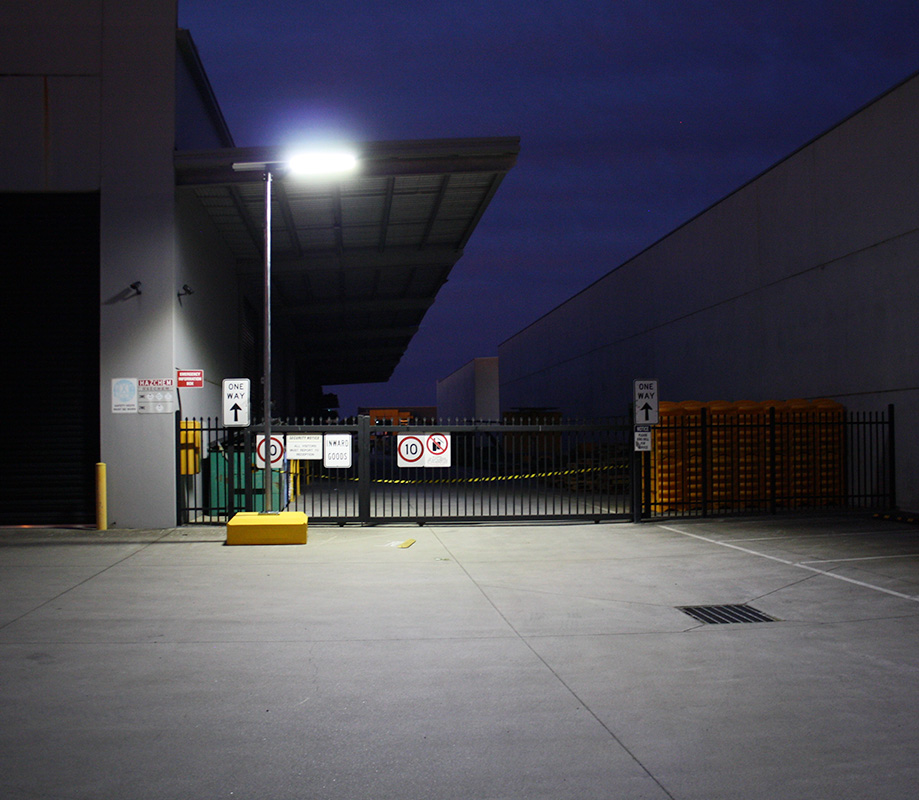

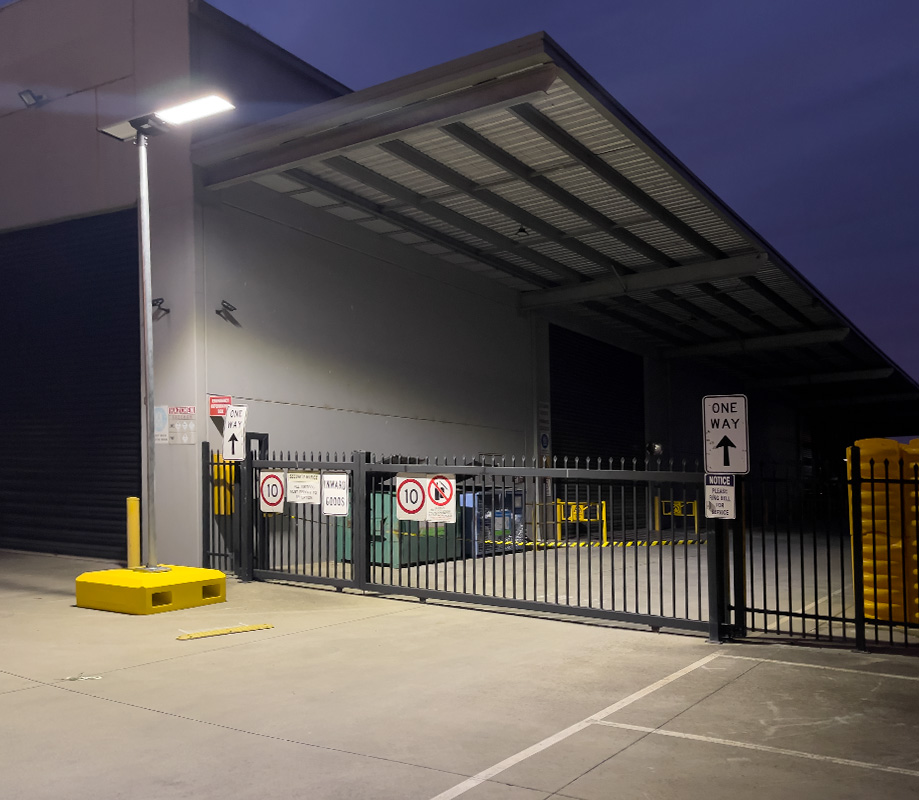

The innovative new Blade Solar Light on a Hinged Light Pole provides a powerful light spread and huge battery capacity; offering brighter and safer spaces wherever it is deployed.

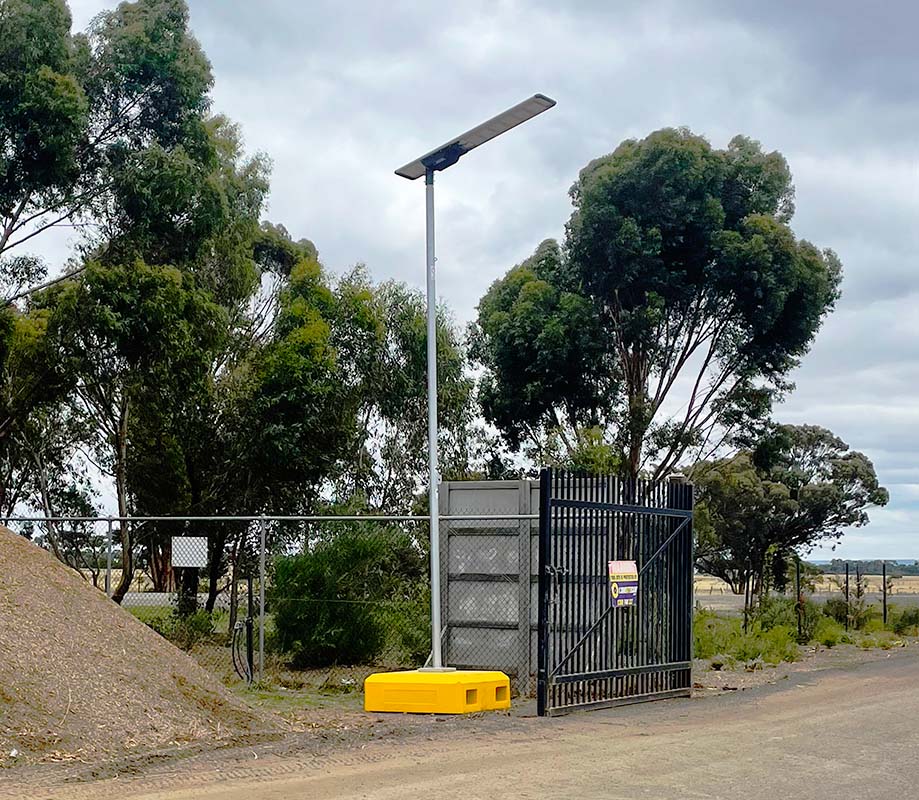

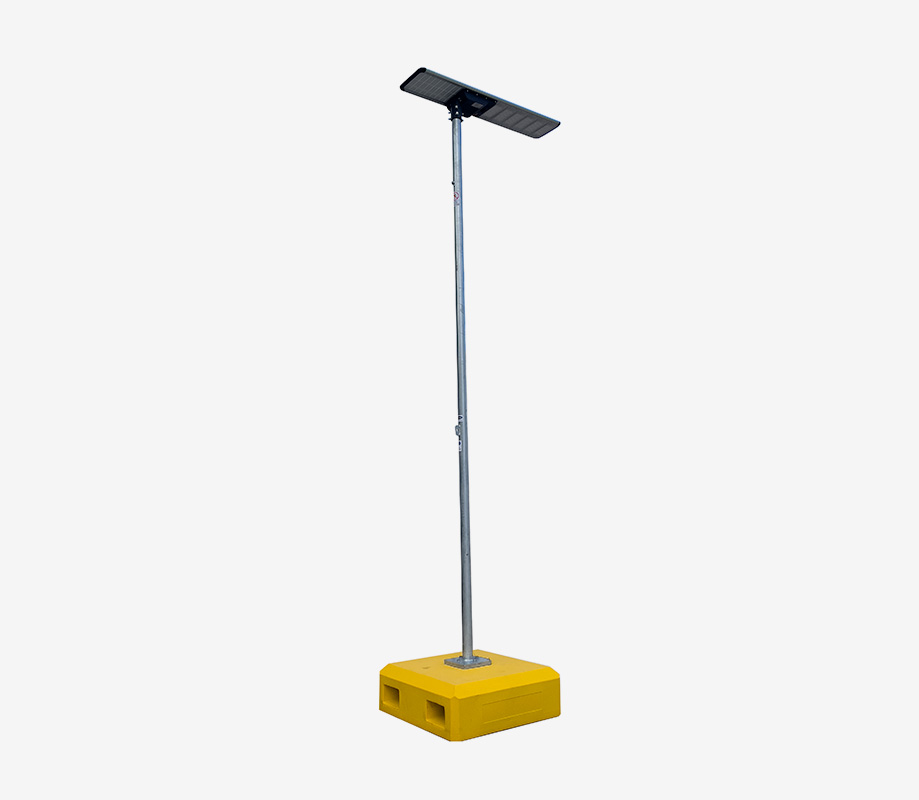

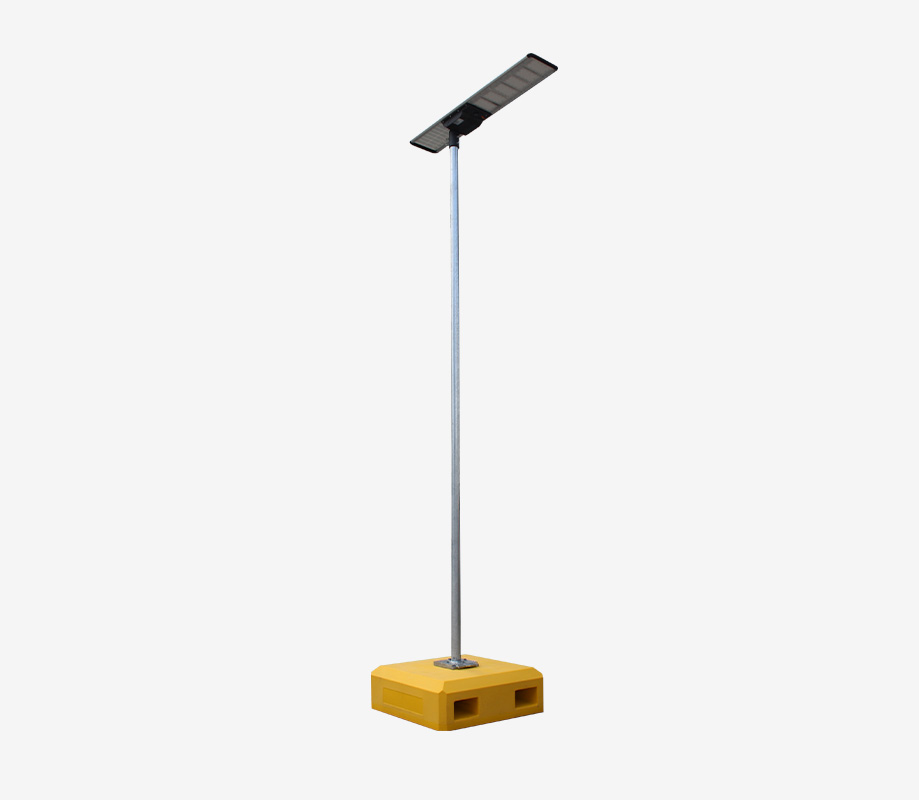

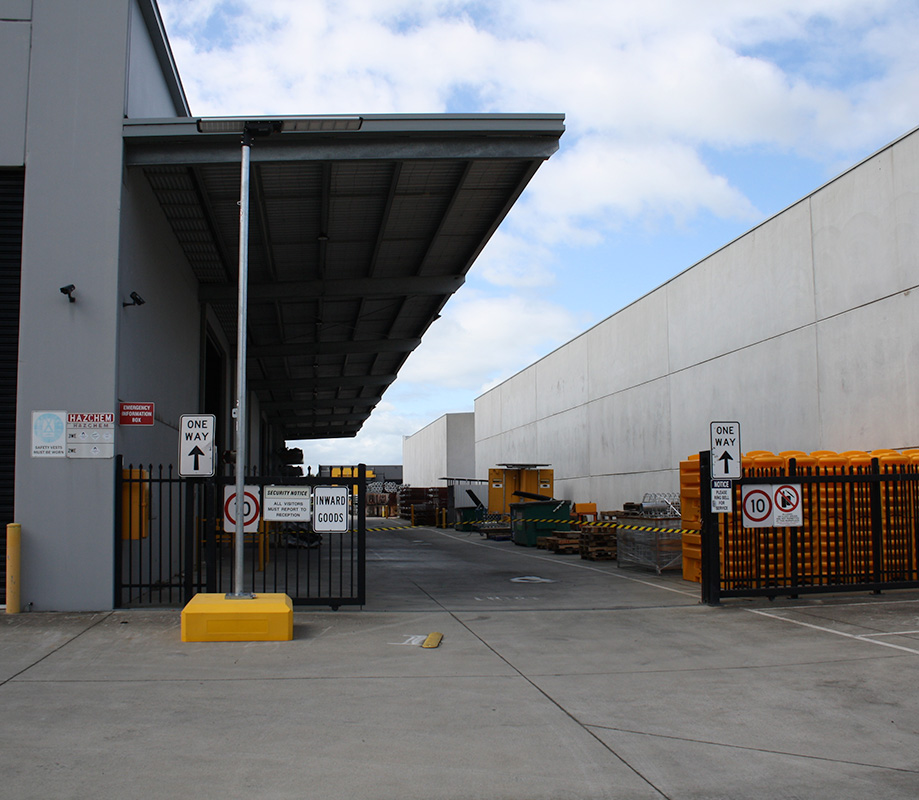

The Blade Solar Light on a six metre galvanised steel hinged pole is a premium grade commercial portable solar lighting solution. The programmable smart lighting system, with status indicators and motion sensor detection has an extra large 12.8V lithium iron phosphate battery which allows the light to run on sensor mode for seven days or more, even on overcast days.

This solar light has an optional remote programmable smart lighting control system, which has a reach of up to 30 metres, and does not rely on direct line of sight to function. It also allows users to control multiple units at the same time in “set and forget” auto or manual mode.

The hinged pole provides easy installation despite its height, and is available with three base options to suit any installation;

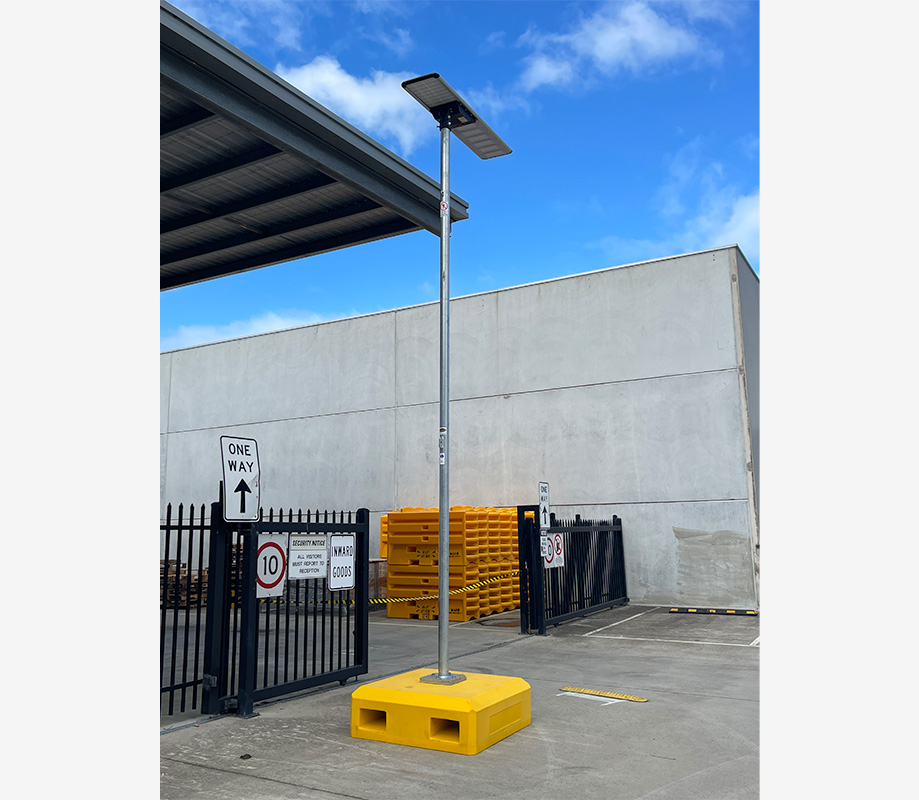

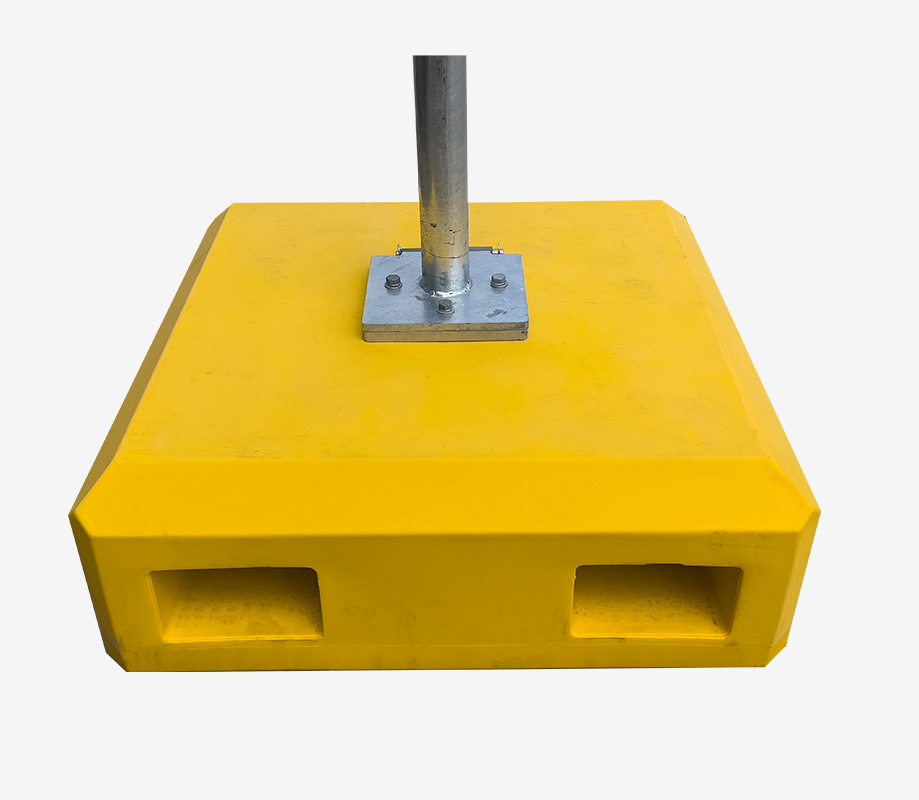

The rotationally molded plastic base is filled with an environmentally friendly concrete and recycled rubber mix and is suitable for wind regions A and B. This option has an indented space for branding signage and can be customised to suit your business in a range of colours.

Pairing the solar light with a concrete base provides an extremely sturdy lighting solution that is wind rated for Region A with the single concrete base option, and Regions B and C with the double concrete base.

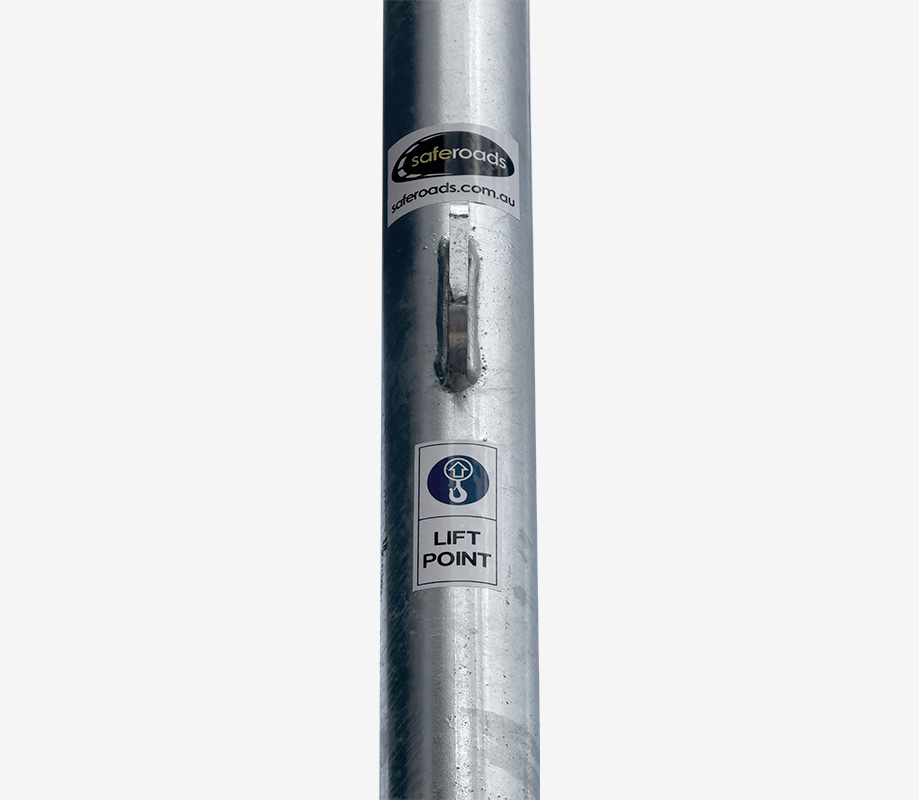

Mobility is not an issue thanks to the intuitive construction and built-in option for lifting on each base.

  • Premium grade commercial solar lighting
  • Hinged galvanised steel 6m light pole
  • Unique base with hinge design allows for ease of deployment
  • Optional remote programmable smart lighting
  • Massive 66Ah battery capacity (up to 12.8V)
  • 5 year product warranty and 3 year battery warranty

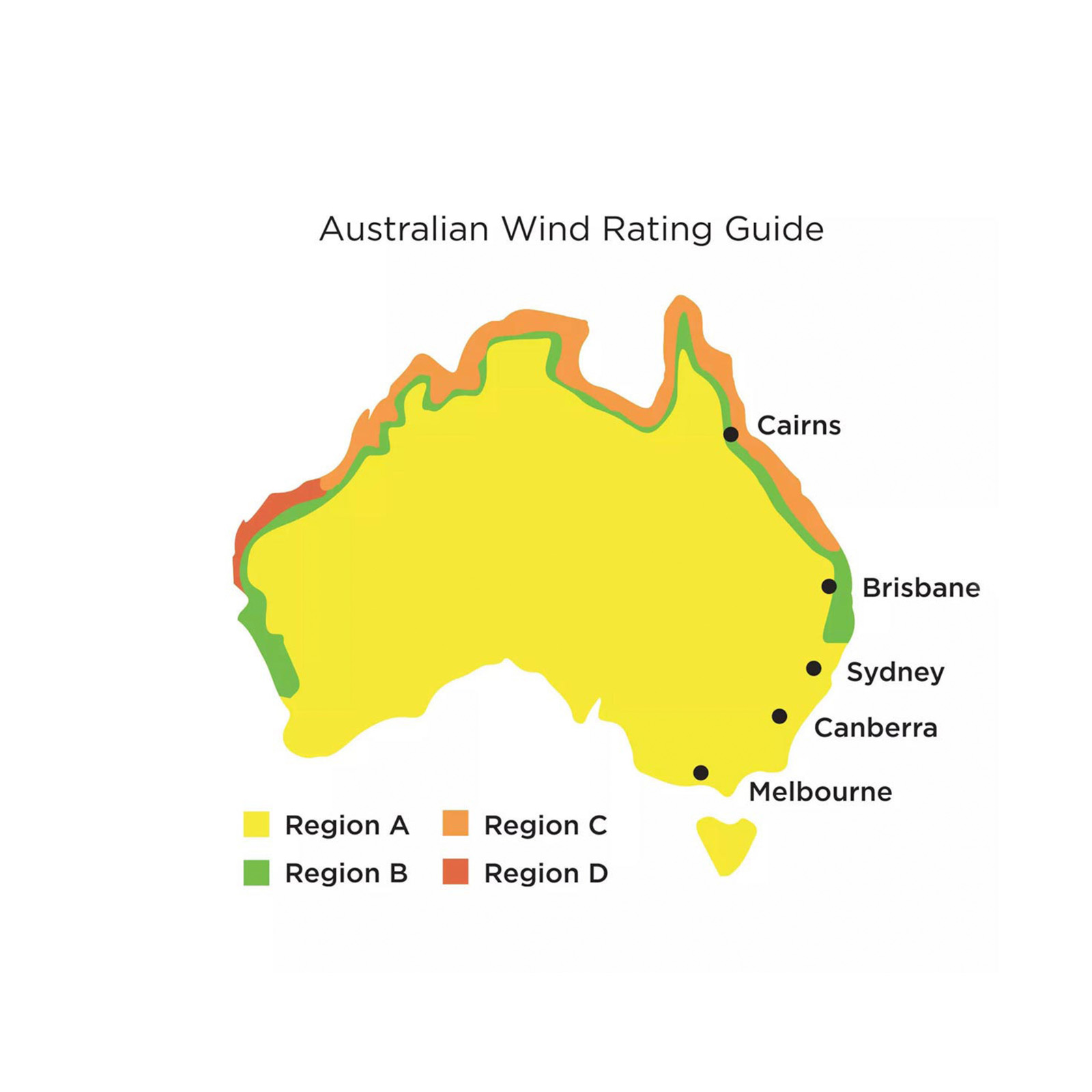

  • Available with 3 base option to suit wind regions A, B and C
Buy Online
Need to order a large quantity? Enquire now

Specifications

Model Solar Blade - Hinged Pole
Efficiency 207lm/W
Lumens 15525lm
Colour Temperature 5000K
CRI Ra≥70
Beam Angle 150° x 60°
Weight 22.5kg
Battery Capacity 12.8V/18AH
Solar Panel Power 125W
Hinged Pole Plastic Base - Wind Region A & B Single Concrete Block Wind Region A Double Concrete Block Wind Region B and C
Overall Height 6.0m 5.8m 6.1m
Base Weight 950kg 750kg 1700kg
Overall weight of a complete light with hinged pole 1,035kg 835kg 1,785kg


Product Features & Inclusions

2071lm/W High Efficiency LED
Motion Sensor Status Indicator
0°- 7° Angle Adjustable Bracket
High Efficency, Extra Large Solar Cells
12.8 Volt Lithium Iron Phosphate Battery
Easy Maintenance Battery Pack
Remote Control (optional)
High Brightness

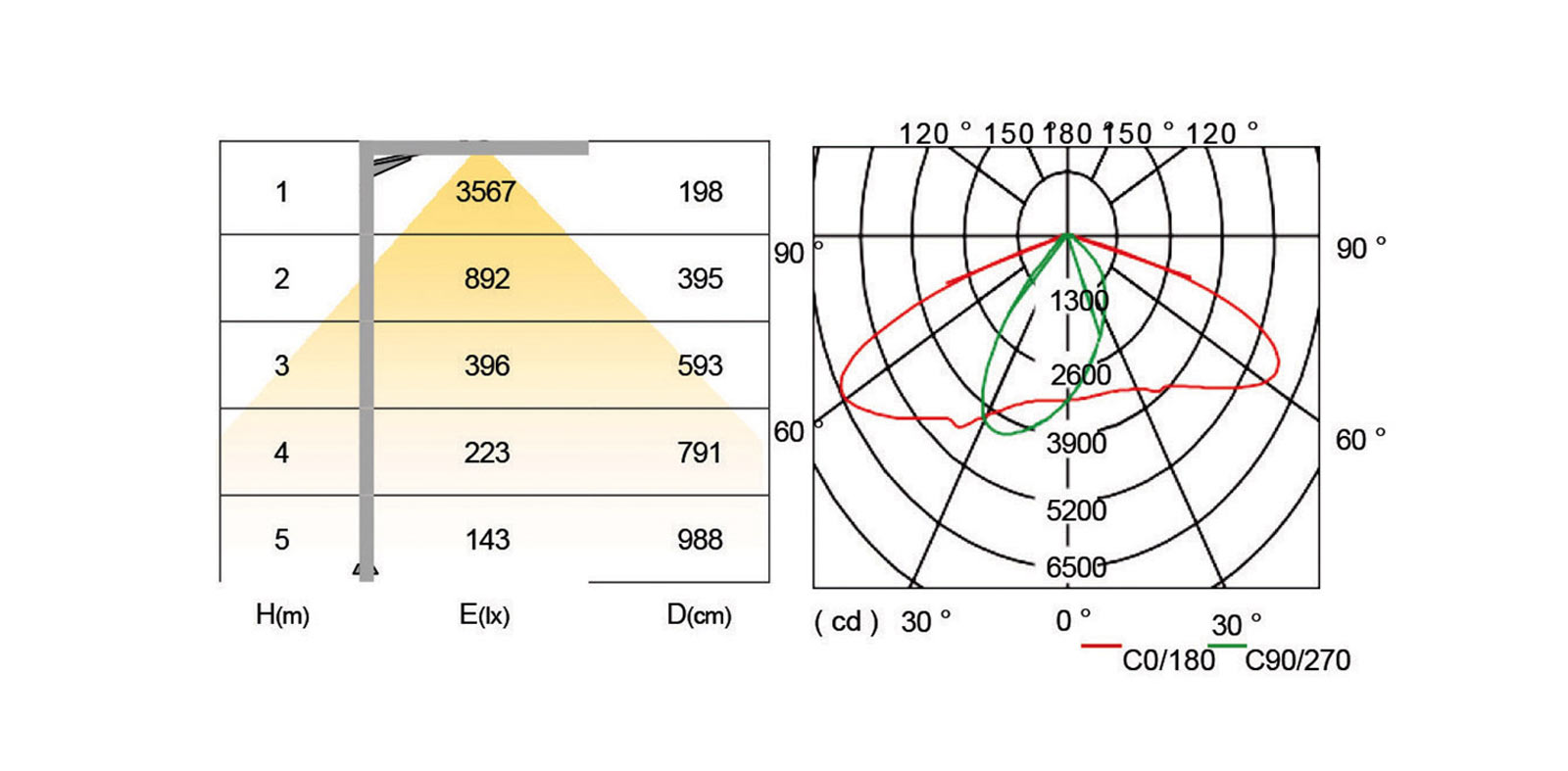

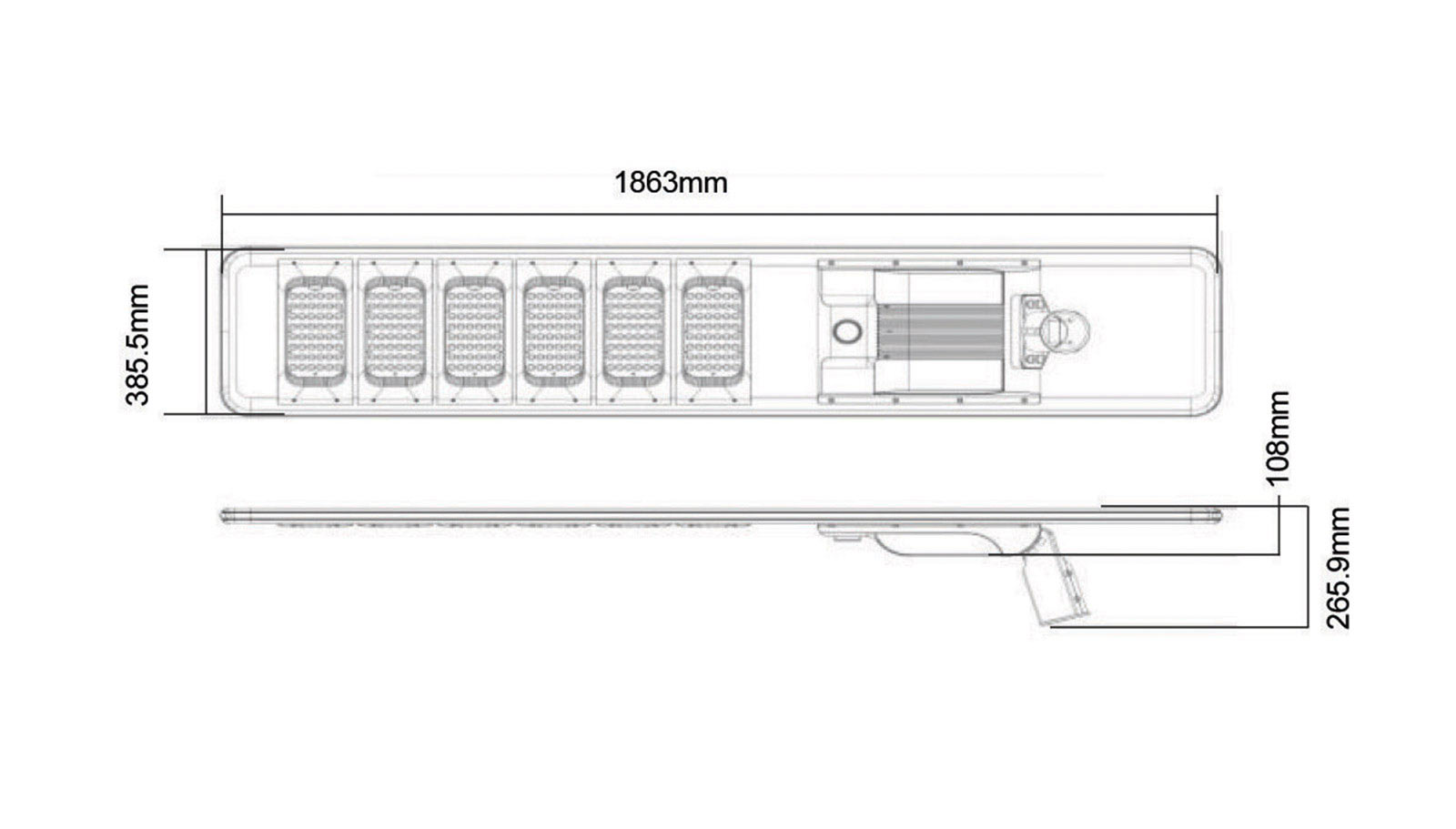

technical drawing
Technical drawing
Technical drawing

Downloads

Usually 25-30 meters, but this will vary depending on the rating that you are seeking to achieve. Please contact us for further information.
Yes, on request. Please contact us for further information.
