Delta Solar Light - Universal Pole

Modern and stylish design

Enjoy a safer workspace or public area and peace of mind with the Delta Solar Light.

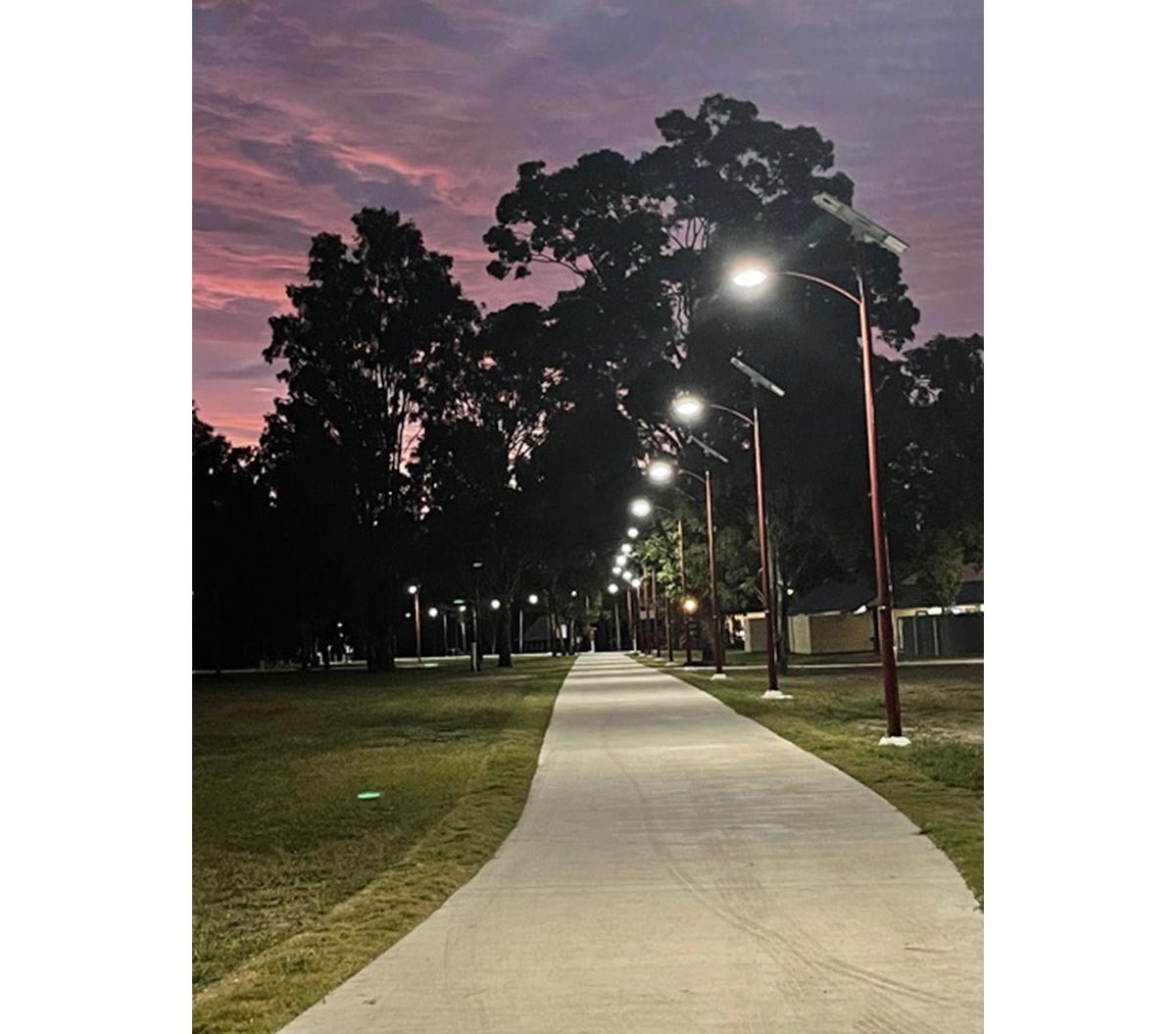

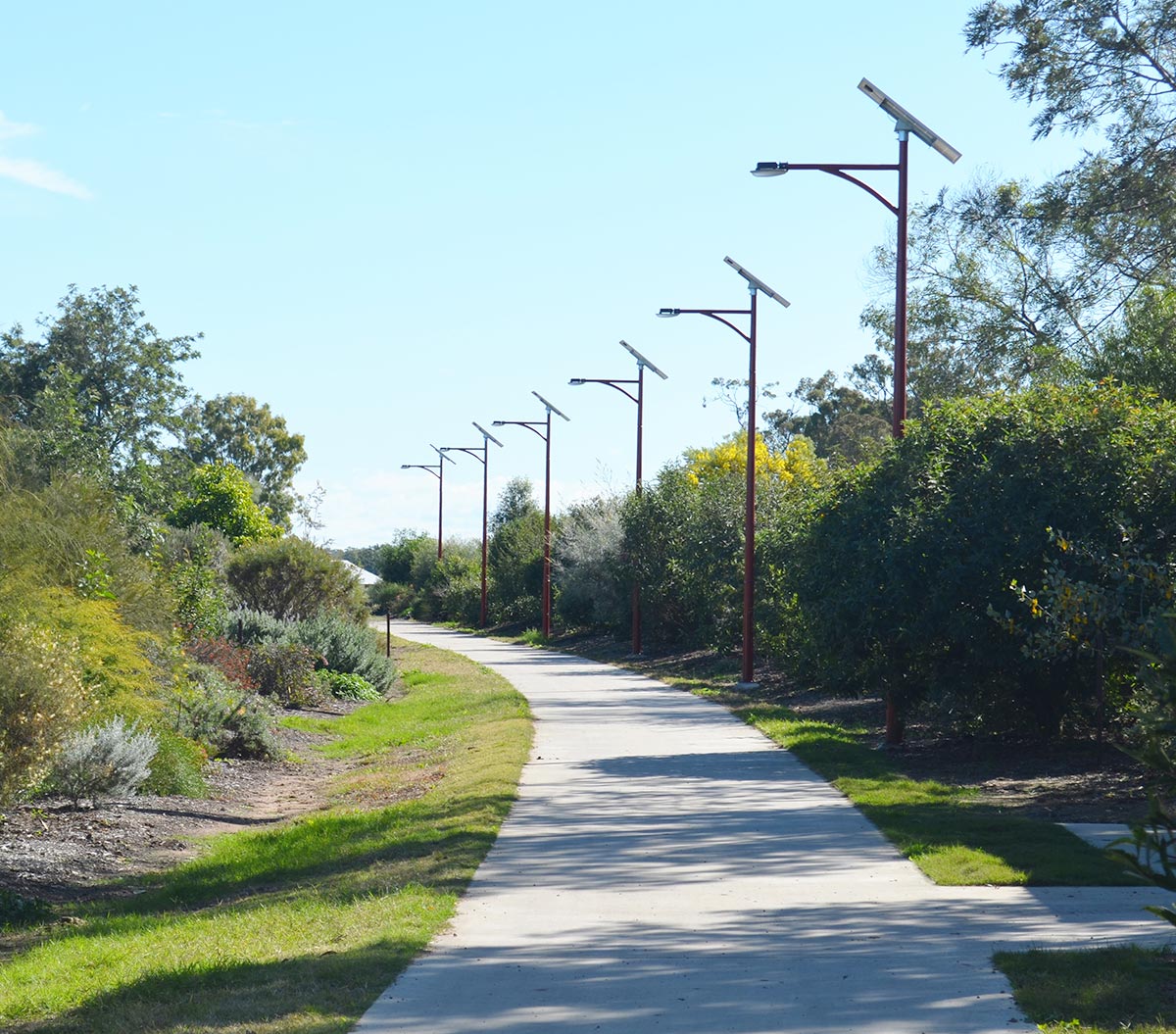

The Delta Solar Light provides a decorative style option in solar lighting. Ideal for parks and gardens, this solar lighting solution offers a tailored alternative to an all-in-one unit. The Universal tapered 5.5m light pole is a simple, modern and stylish design, which fits into many landscapes.

  • Decorative style with customised paint options
  • Solar panel can be faced in any direction to optimise sunlight
  • Mono-crystalline solar panel
  • Built in lithium-ion battery storage
  • Automatic day and night mode controlled by PE cell

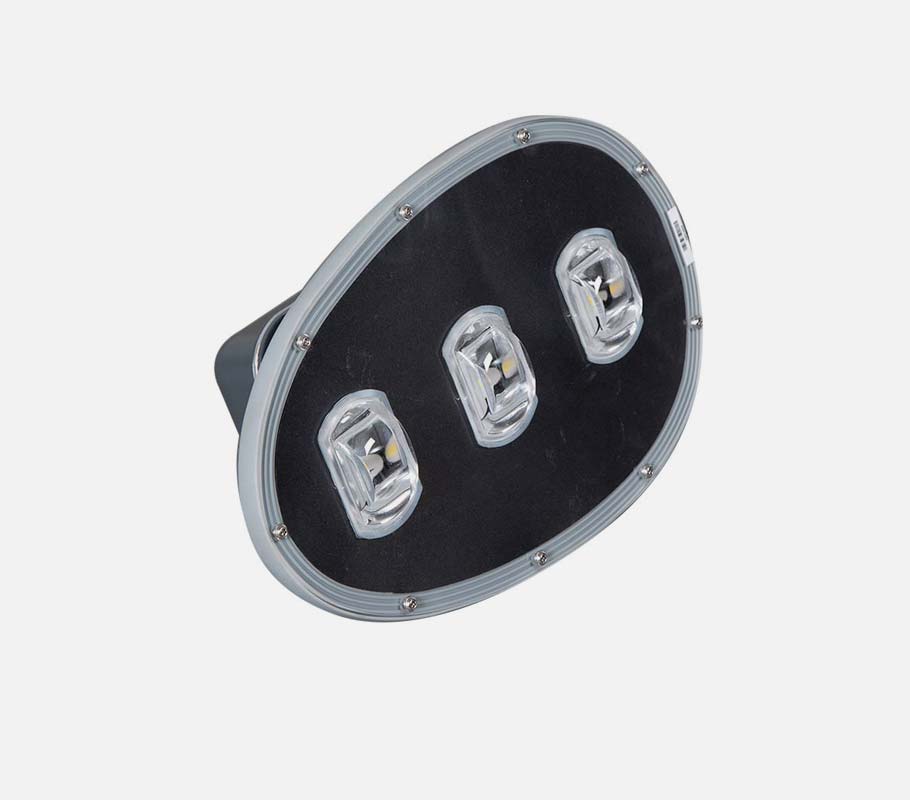

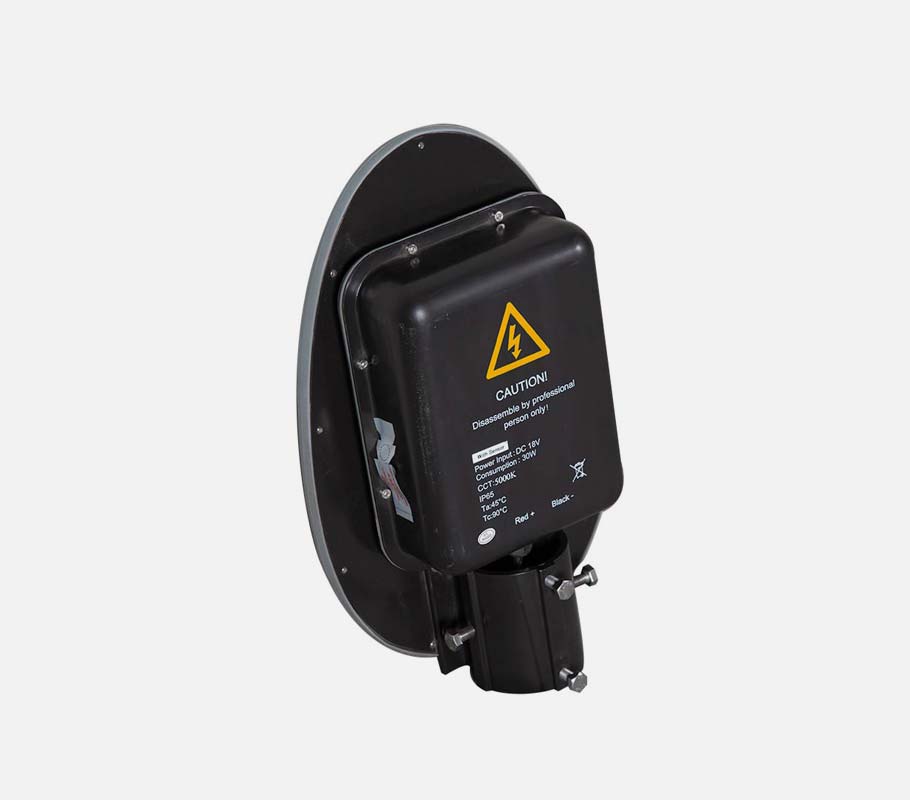

  • Batteries housed within the LED light head

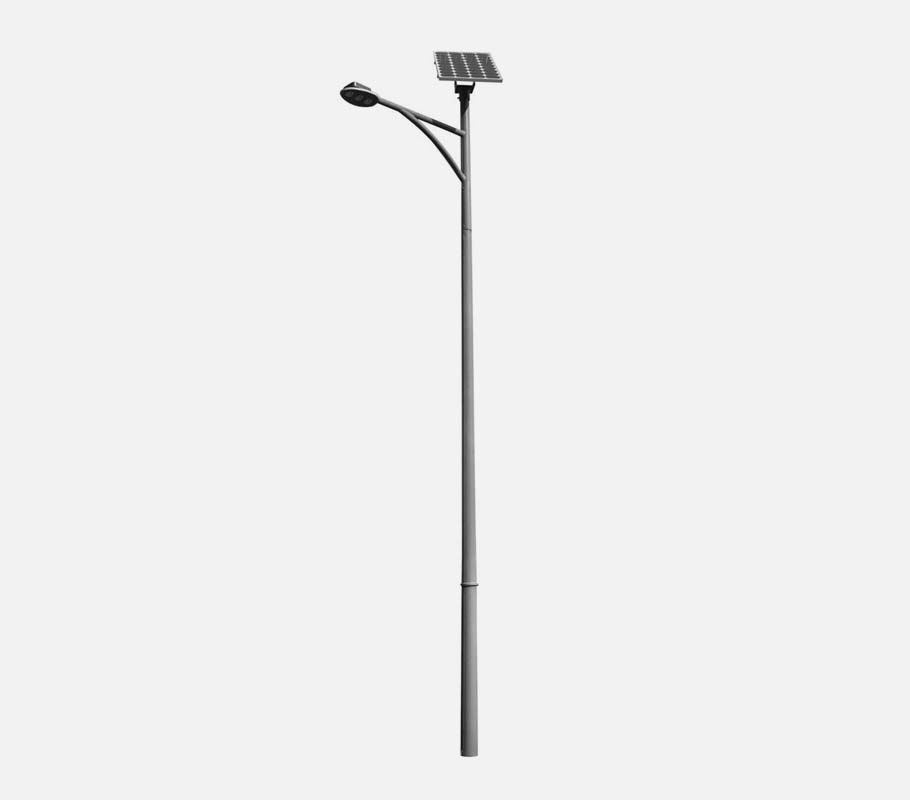

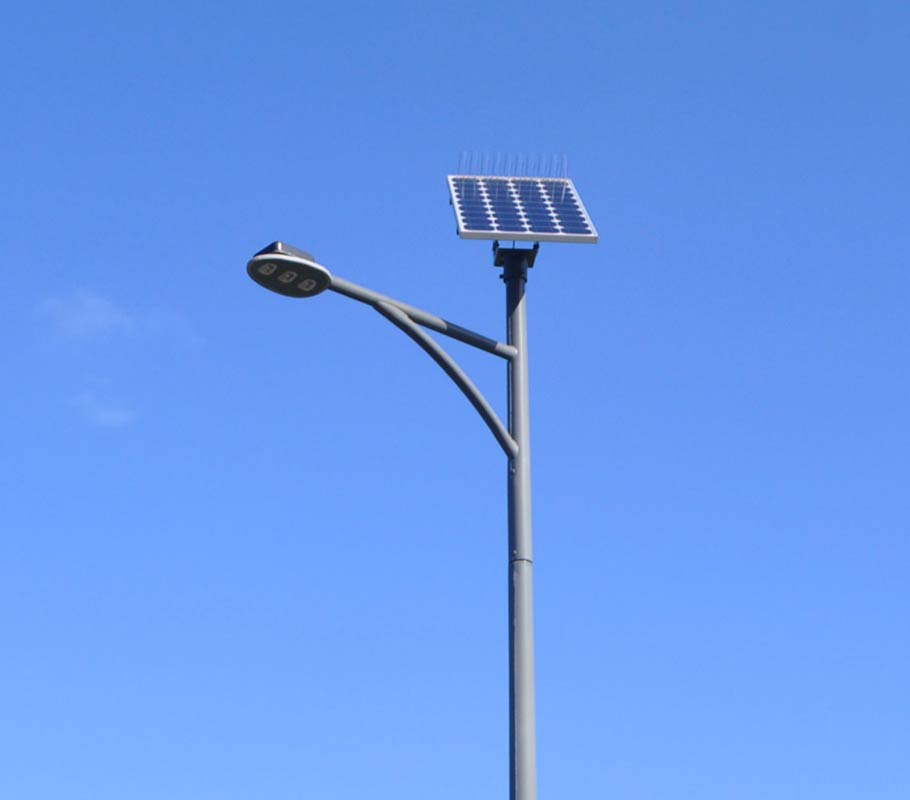

  • 5.5m Universal tapered light pole with single outreach
  • Surface or in-ground mount options for easy installation
  • Wind rating: Region C
Buy Online
Need to order a large quantity? Enquire now

Videos

Solar Lights
Solar Lighting

Specifications

Power Consumption 30W
CRI Ra≥80

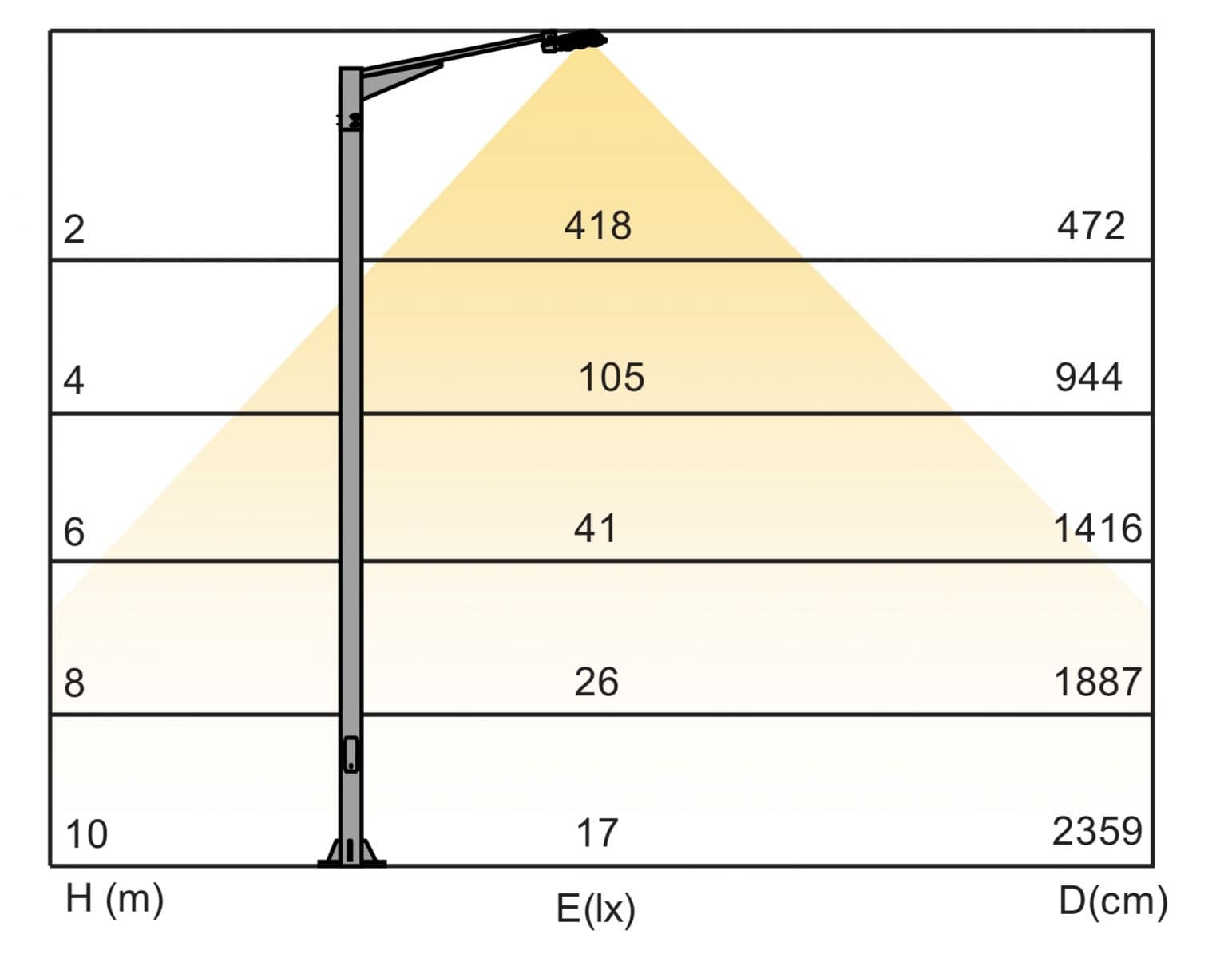

Luminous Flux 3180lm(6000K)
Luminous Efficacy 106lm/W(6000K)

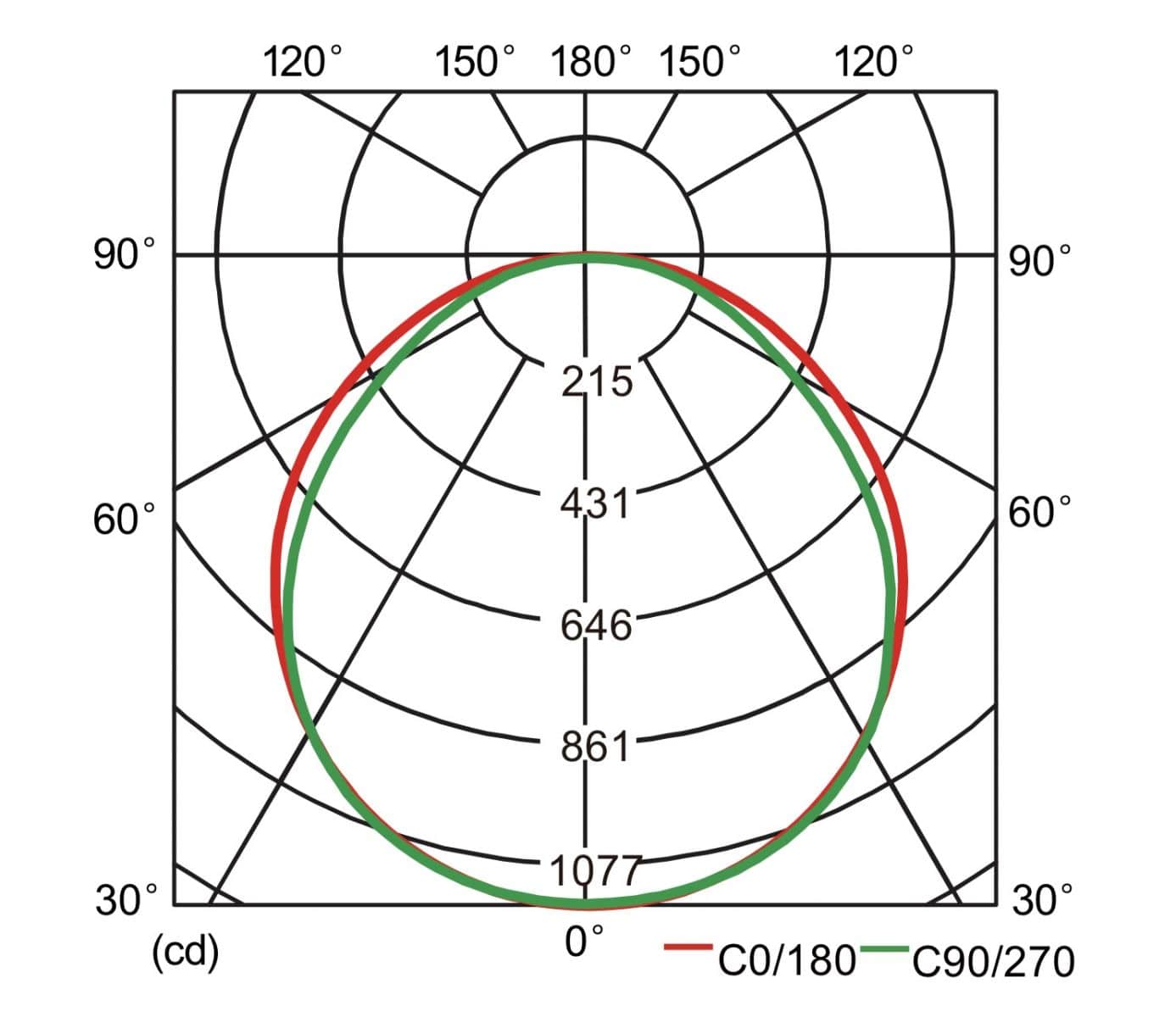

Beam Angle 120°
Lighting Duration 30hrs*1
Time to fully charged 8hrs*2

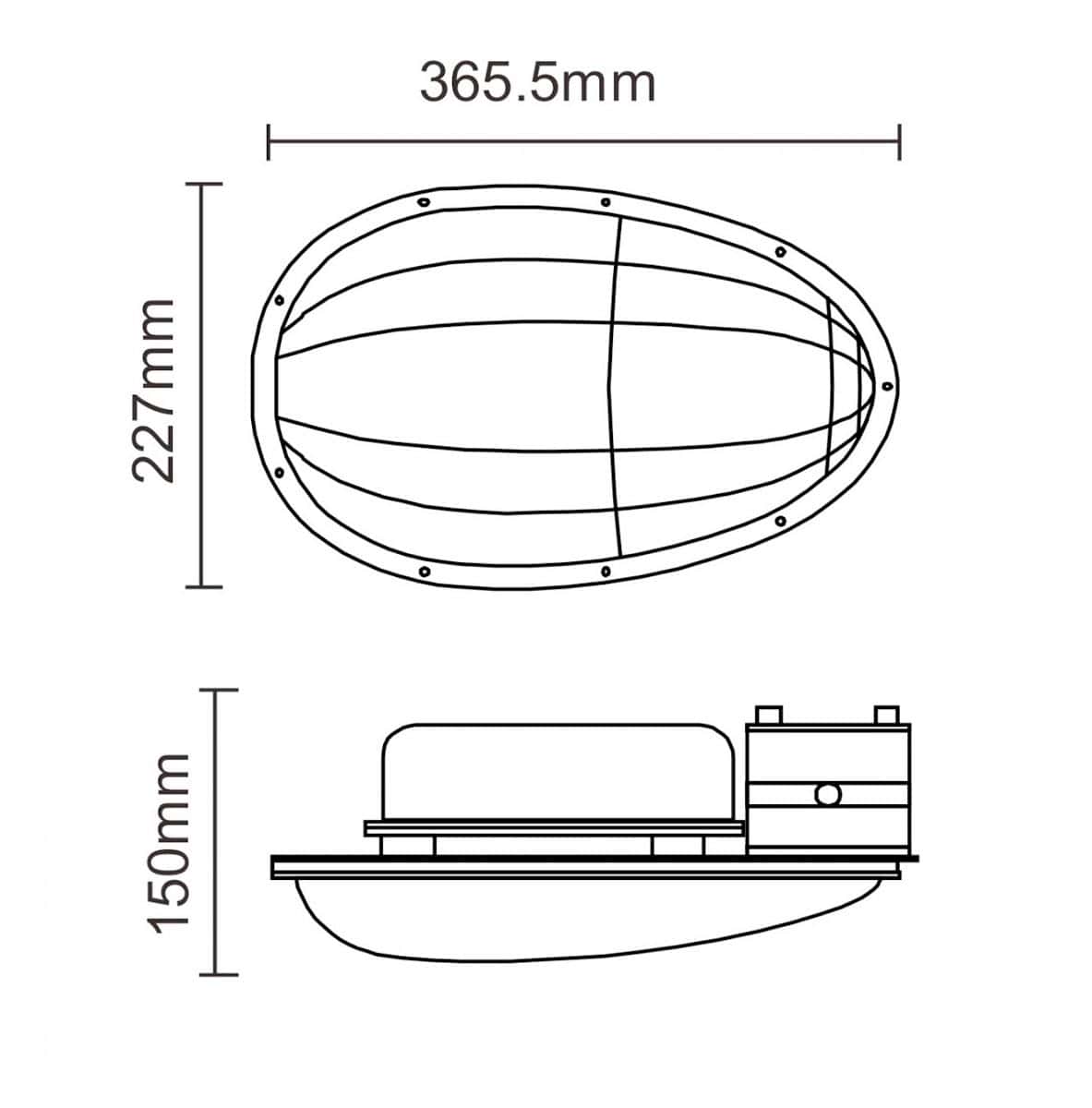

Luminaire Material Aluminum
Luminaire Weight 2.8kg/6.17lb
Solar Panel Weight 7.35kg/16.20lb
Battery Position Built-in on the luminaire
Battery 14.8V 15Ah, Internal
Operating Temperature -25°C~+45°C, -13°F~+113°F
Warranty 5 years


Battery Specifications:

Nominal Capacity 15000mAh
Battery cell Lithium battery
Battery Life 3yrs
Cycle Life 1000 times
Maximum Charge/ Discharge Current 5000mA
Standard Discharge Current 2000mA
Nominal Voltage 14.8V
Max Charge Voltage 16.8V
Discharge Cut-off Voltage 12.0V
Overcharge Detection Voltage 4.25V±0.025V
Overdischarge Detection Voltage 2.5V±0.1V
Overdischarge Detection Current 7A~15A
Relative humidity 10%~90%


Solar Panel Specifications

Maximum Power (Pmax) 60Wp / 90Wp
Maximum Power Voltage (Vmp) 18V
Maximum Power Current (Imp) 3.33A
Open-Circuit Voltage (Voc) 21.4V
Short-Circuit Current (Isc) 3.78A
System Voltage 1000V
Tolerance


Mechanical Characteristics

Solar Cell Mono125×78mm
Number of Cells 36 (4×9)
Dimension 765×550×35mm / 1196×550×30mm
Frame Aluminum alloy
Surface Glass 3.2mm, High Transmittance, Low Iron, Tempered Glass
Delta Integrated Solar Light 30w
Solar Integrated Lighting 30w
30w Delta Solar Light
30w Delta Integrated Solar Light

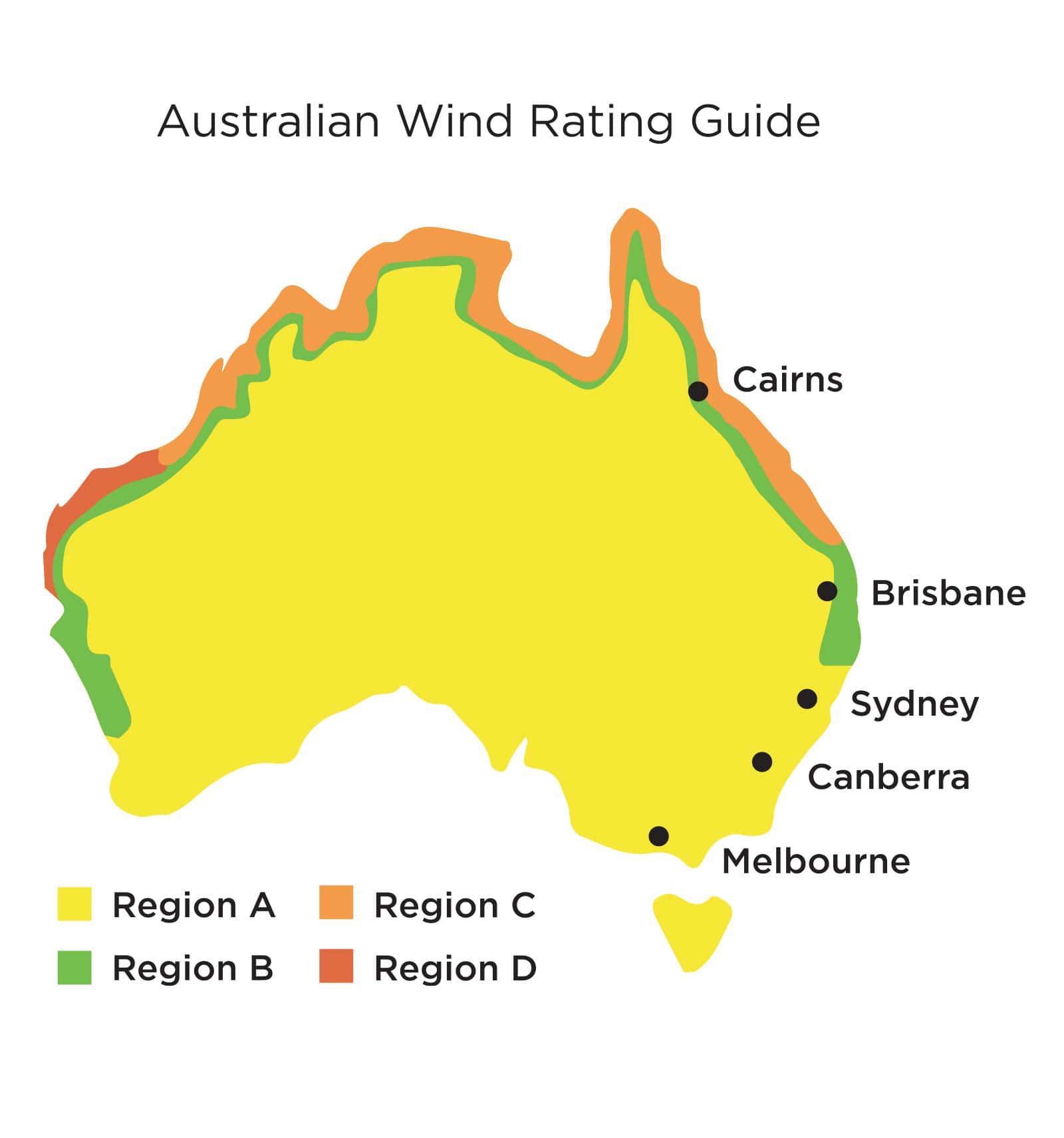

Australian Wind Rating Guide

Downloads

Warranty: Light Fitting Warranty: Light Pole
IES File
*Please note this file will only open using programs such as Dialux, AGI32, or Relux.

Case studies

Delta Universal Pole lights

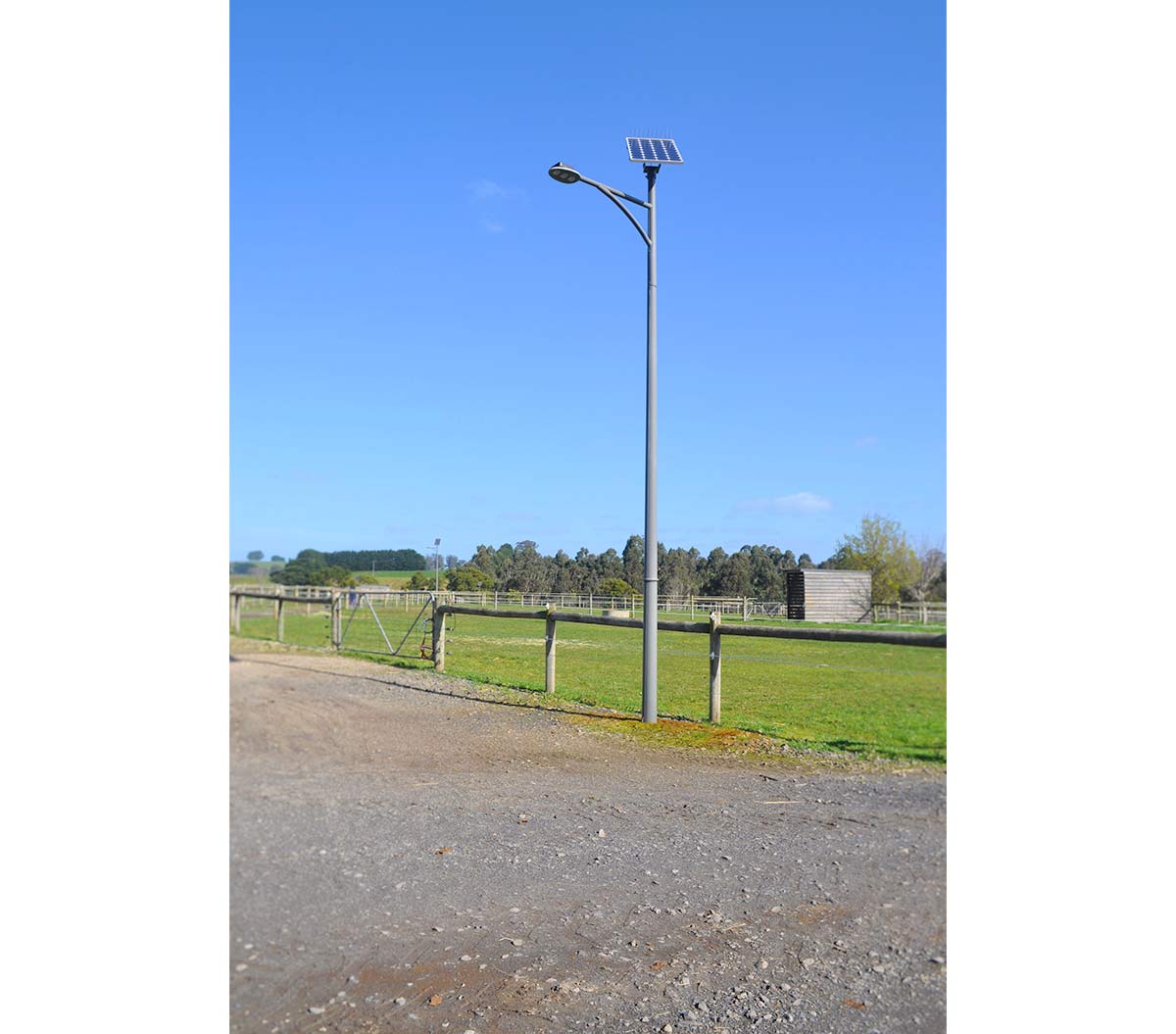

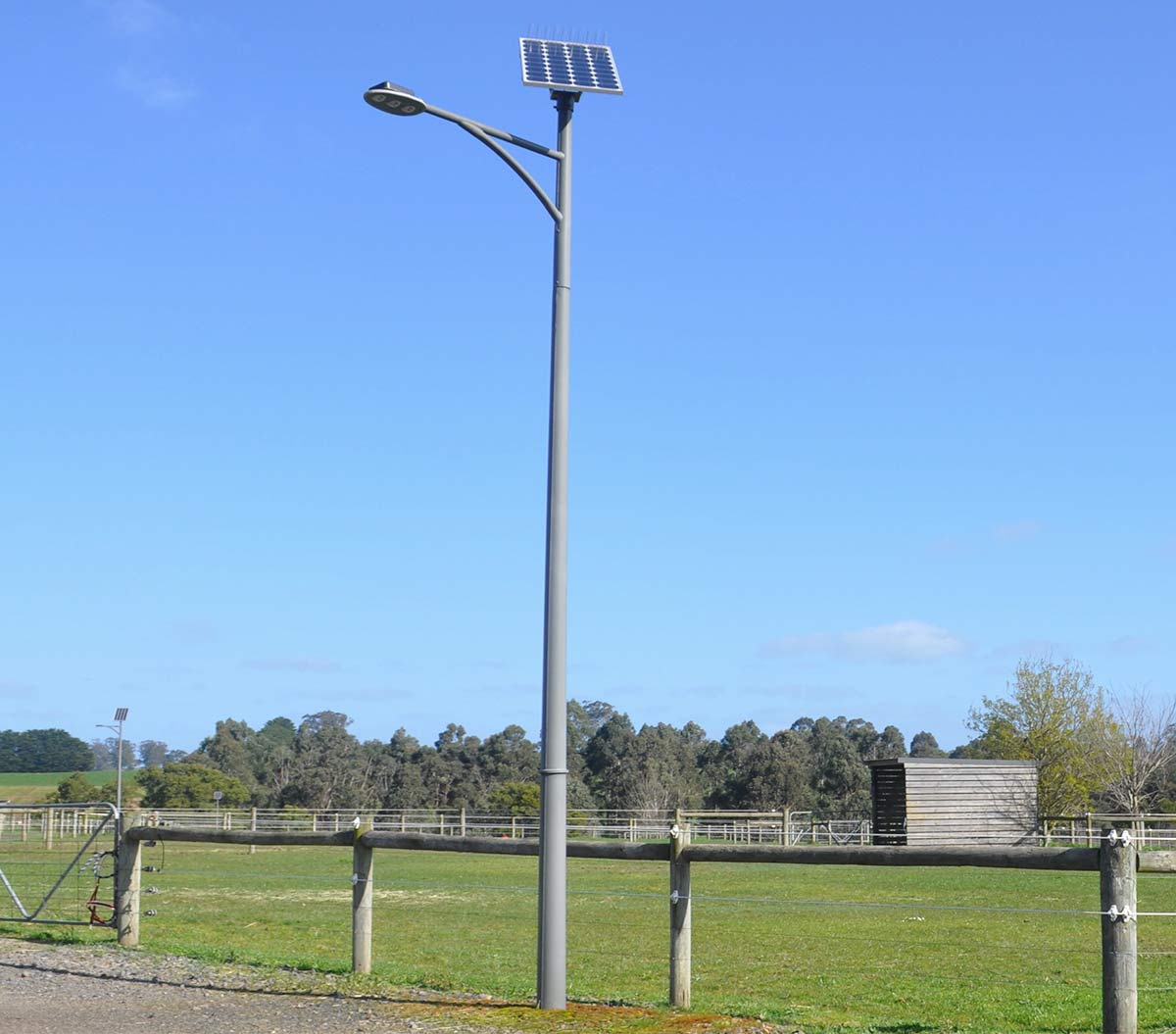

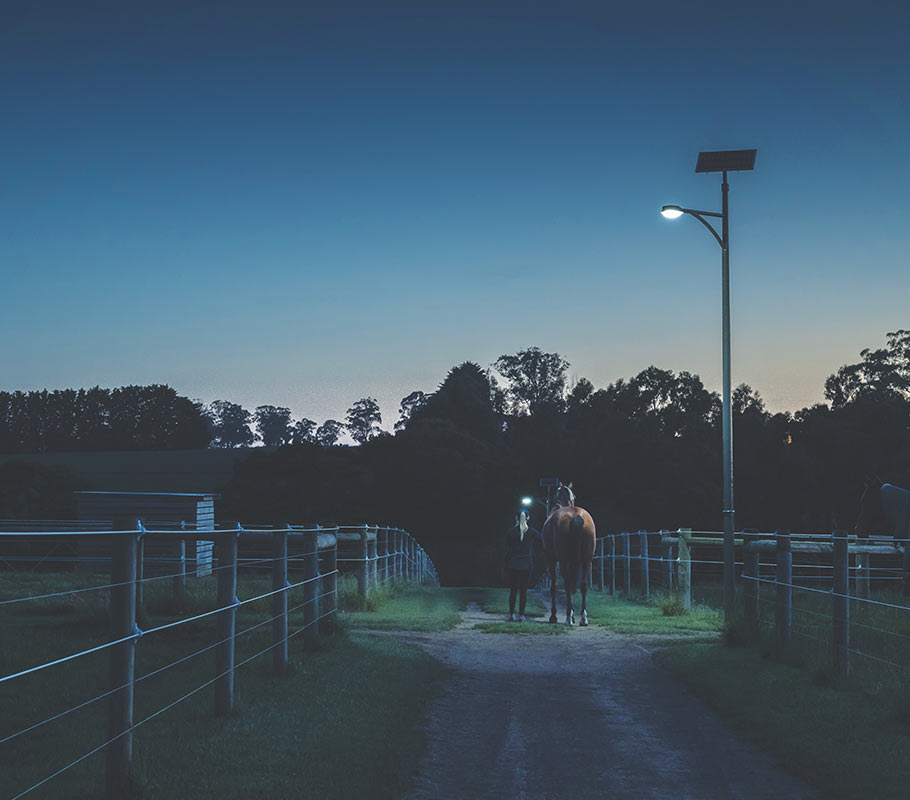

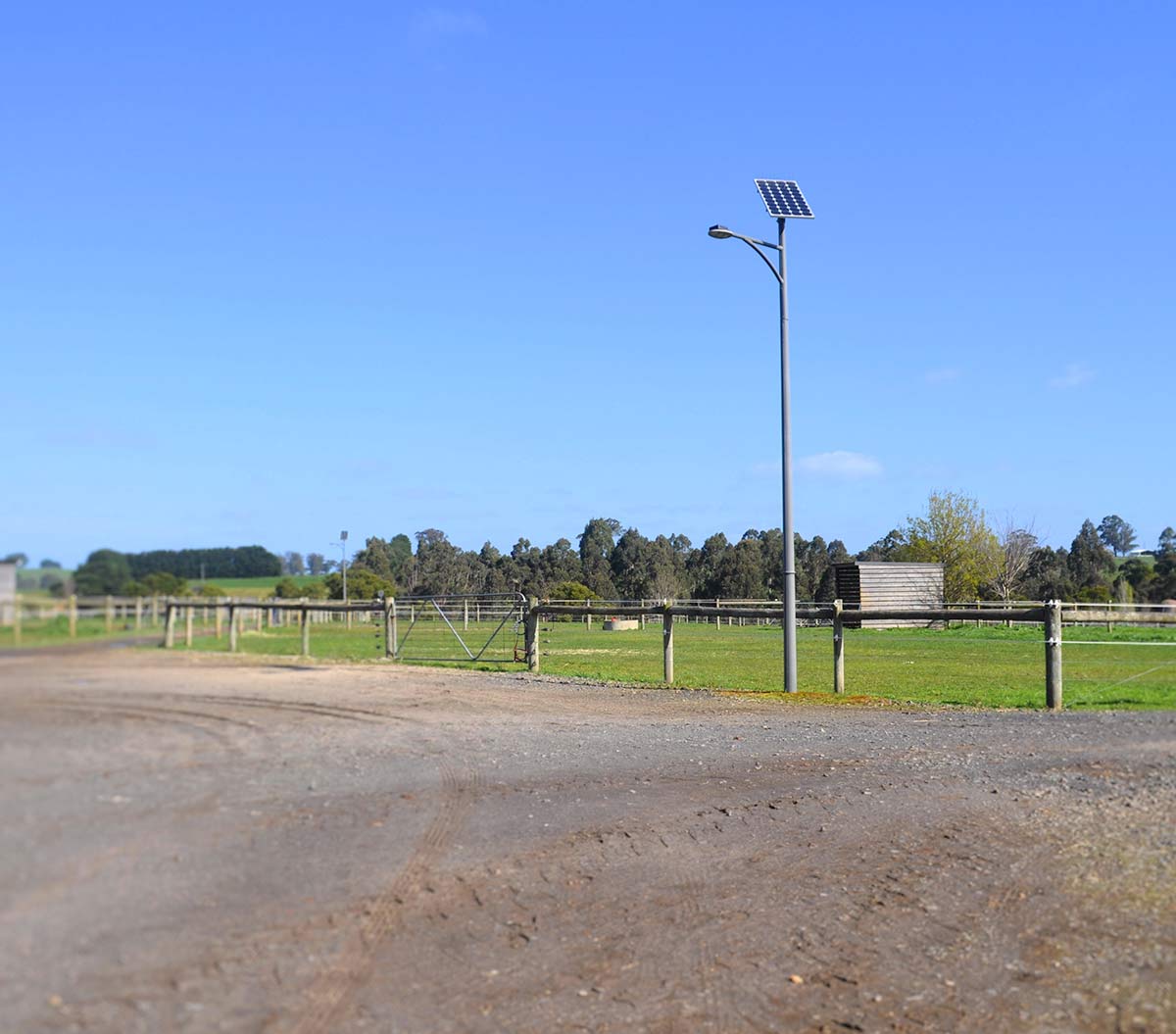

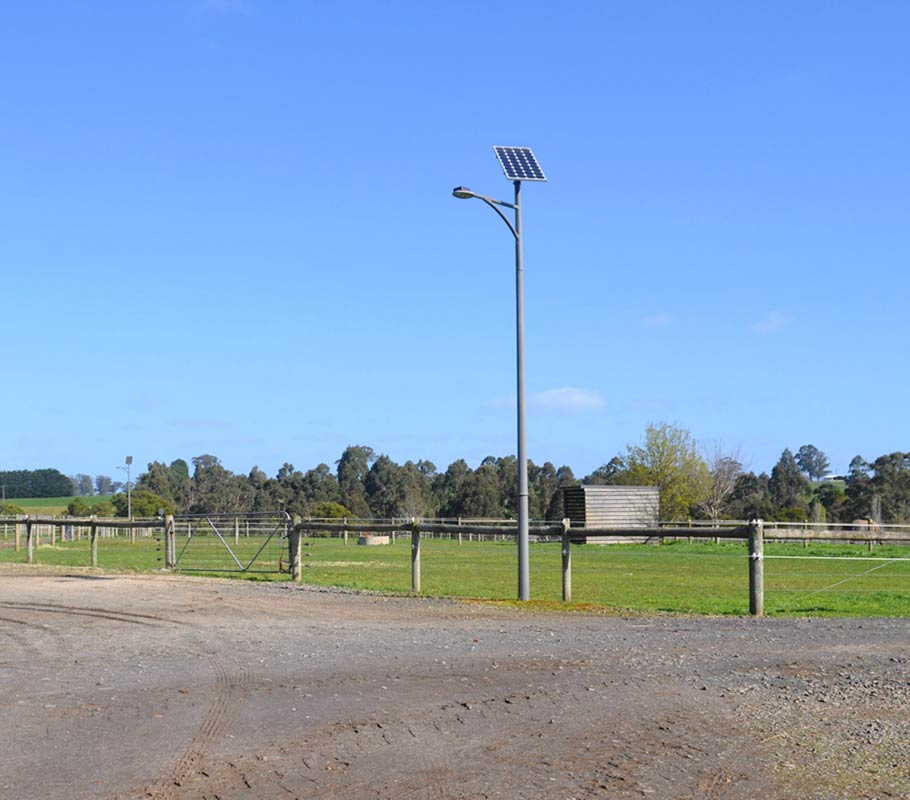

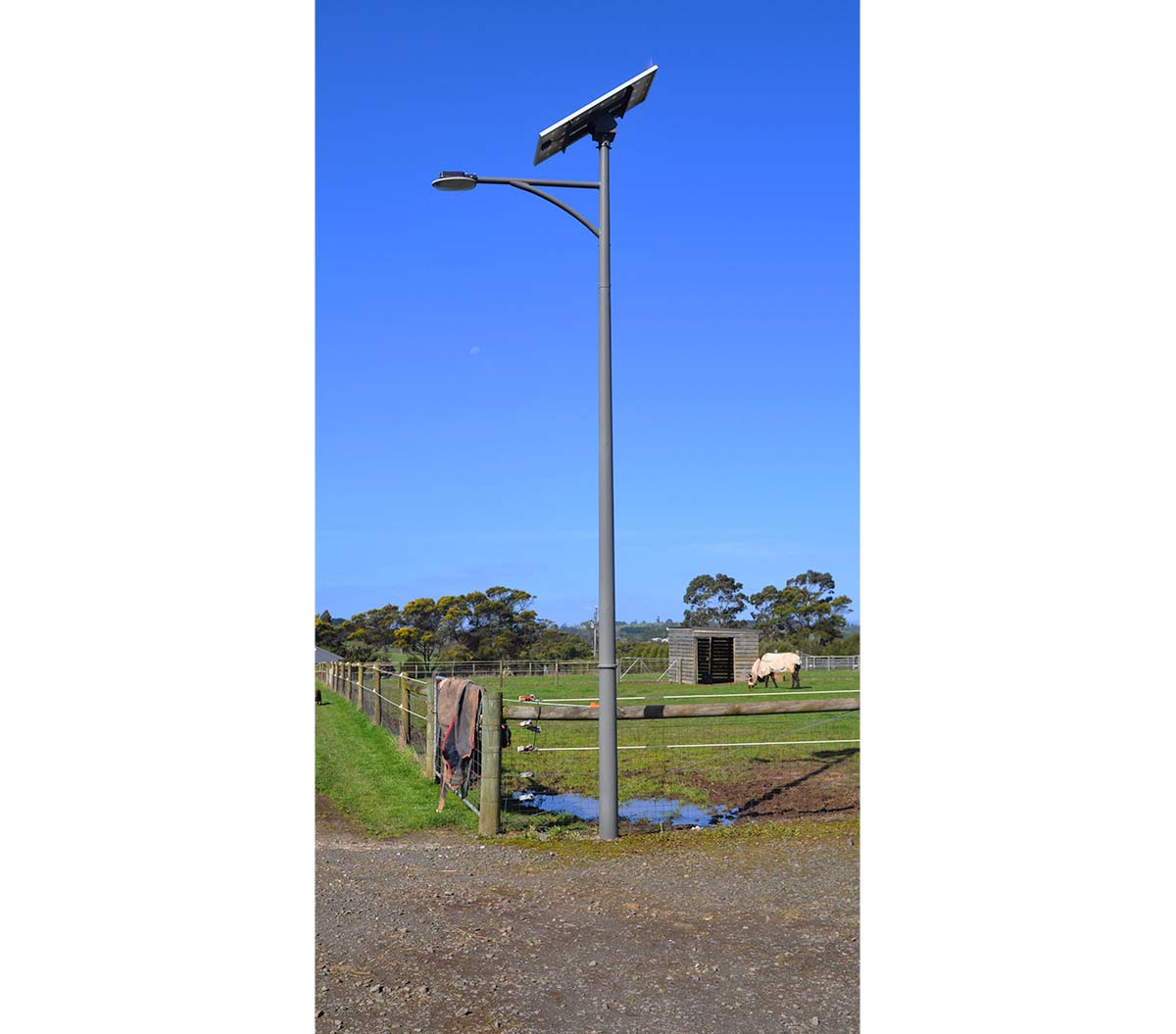

Randall Park Equestrian Centre - Warragul, Victoria

Featuring 30W Delta Solar Lights with Universal Pole
